XingQiong  XSTAR Mini Brushless ESC For Car，Start with the 6A Brushless ESC

Panorama

Back

Features

   1)、Full protection feature including low voltage, over-heat, throttle signal lost, startup protection and self-check.

   2)、Compatible with sensorless brushless motor.

   3)、Excellent startup performance, great throttle linear and quick throttle response.

   4)、Support highest motor speed 240,000RPM(2 poles), 80,000RPM(6 poles) and 40,000(12 poles).

   5)、Easy configure with program card.

   6)、System can automatically detect throttle neutral point and neutral range is adjustable.

   7)、Three work mode can match different requirement.

   8)、4 steps of maximum reverse force adjustment, 5steps of maximum start force adjustment.

   9)、3steps of maximum brake force adjustment, 5 steps of drag brake force adjustment, 4 steps of initial brake force adjustment.

   10)、Support 1 cell operation (min voltage: 3V, only available for XC-6A and XC-10A).

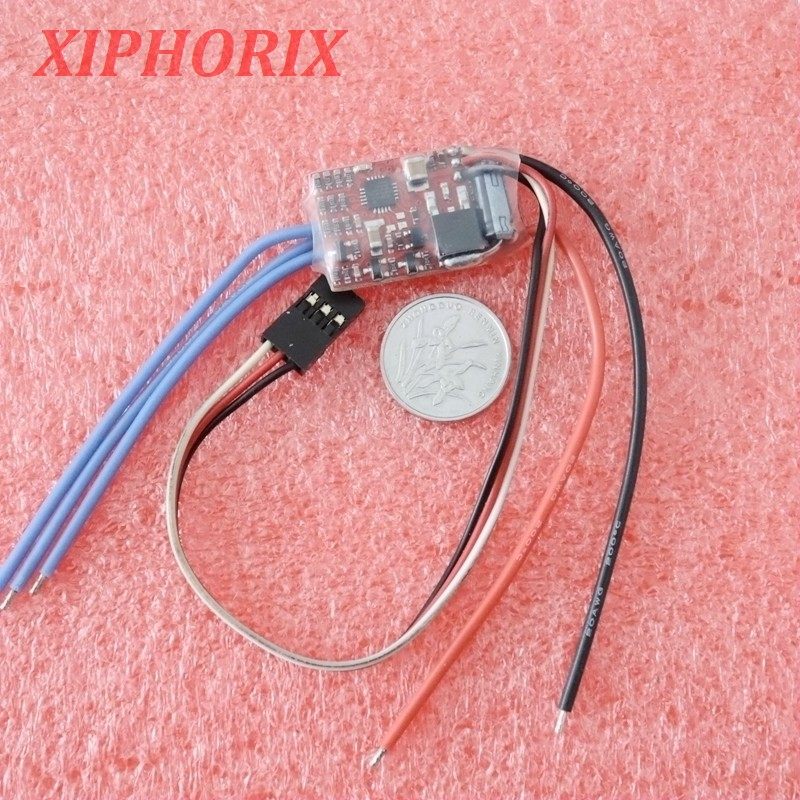

Size

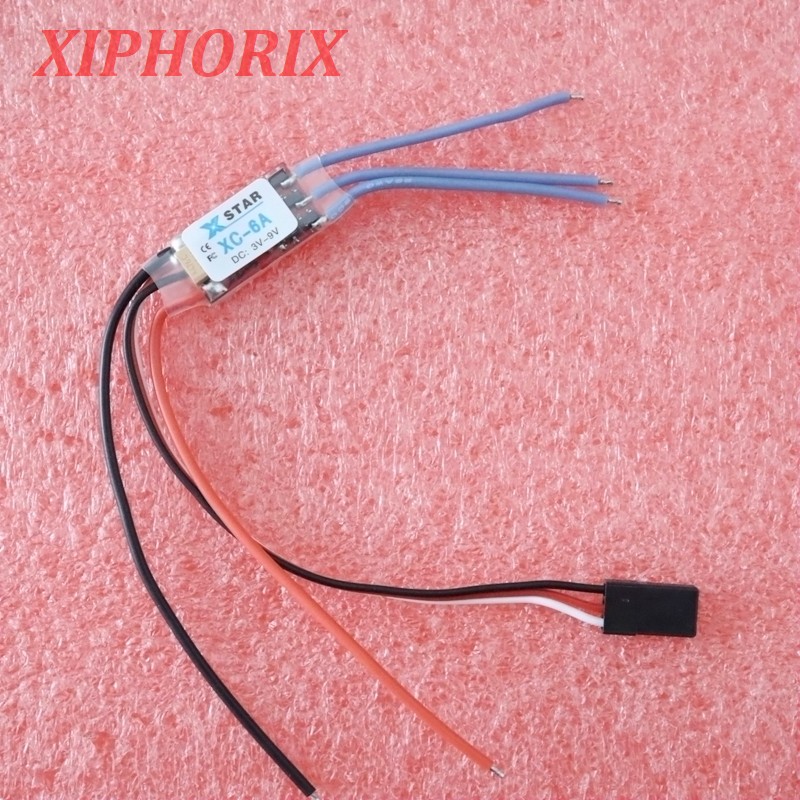

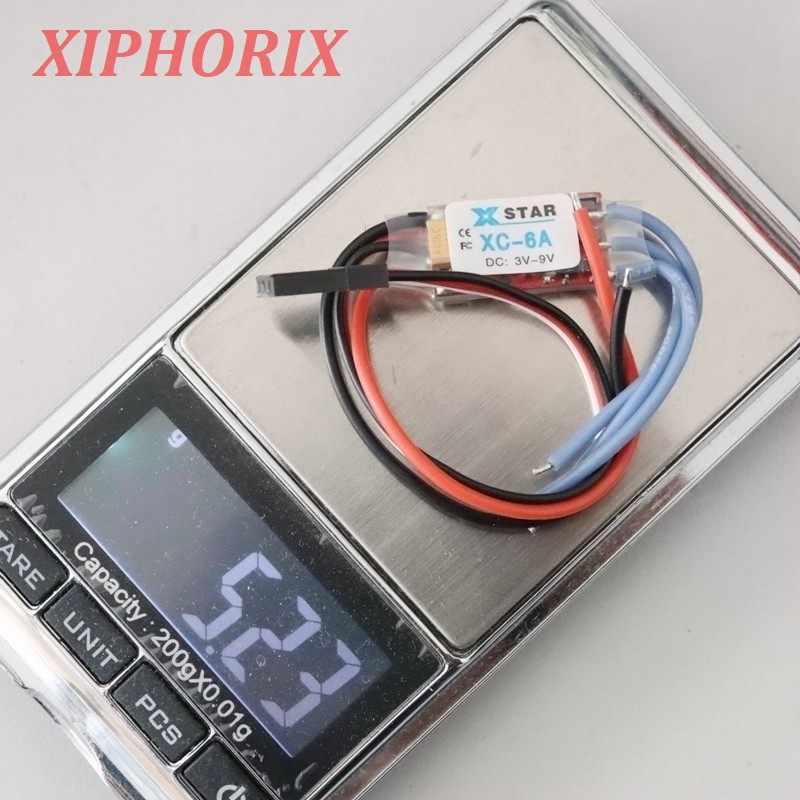

6A ESC Specification:

   · Input voltage: 3V-9V (support 1-2 lithium batteries)

   · Continue current: 6A

   · BEC output: 1A /5V (linear)

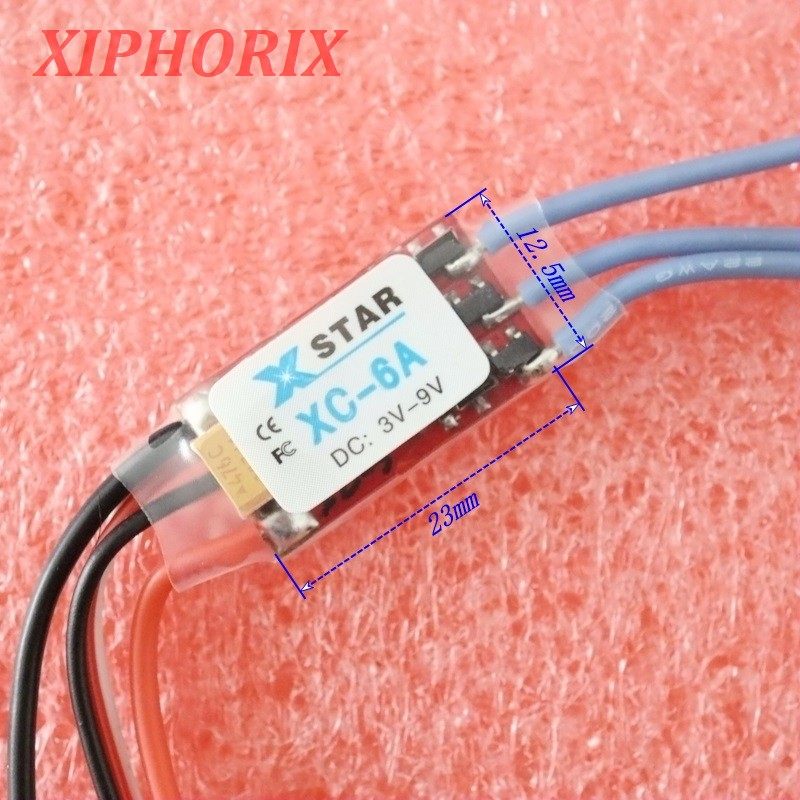

   · Size( lengthX width X high): 23x12.5x5mm

   · Weight: 5.23 g

​Package

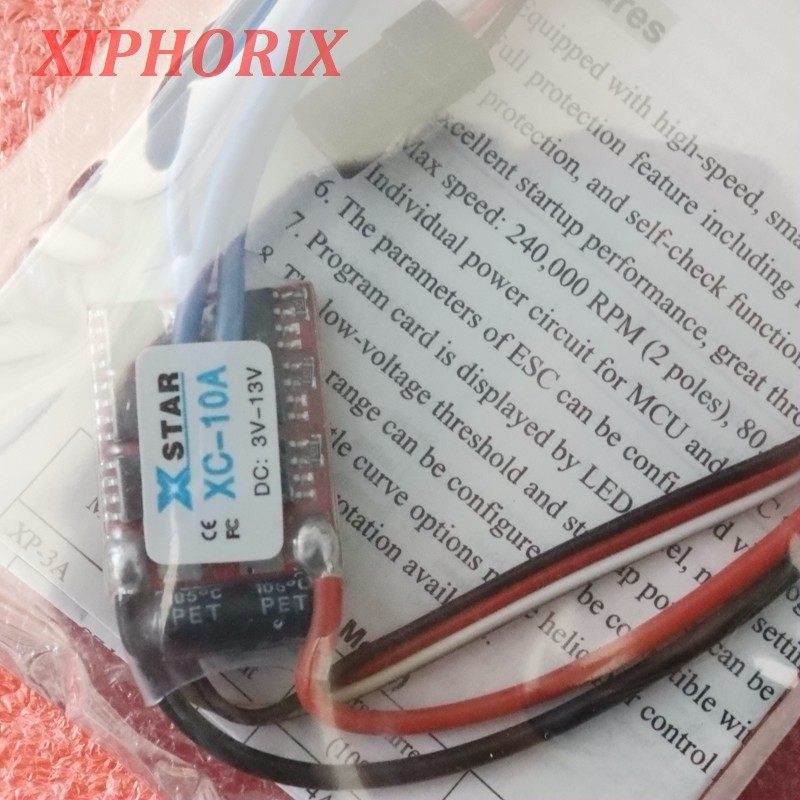

10A Brushless ESC

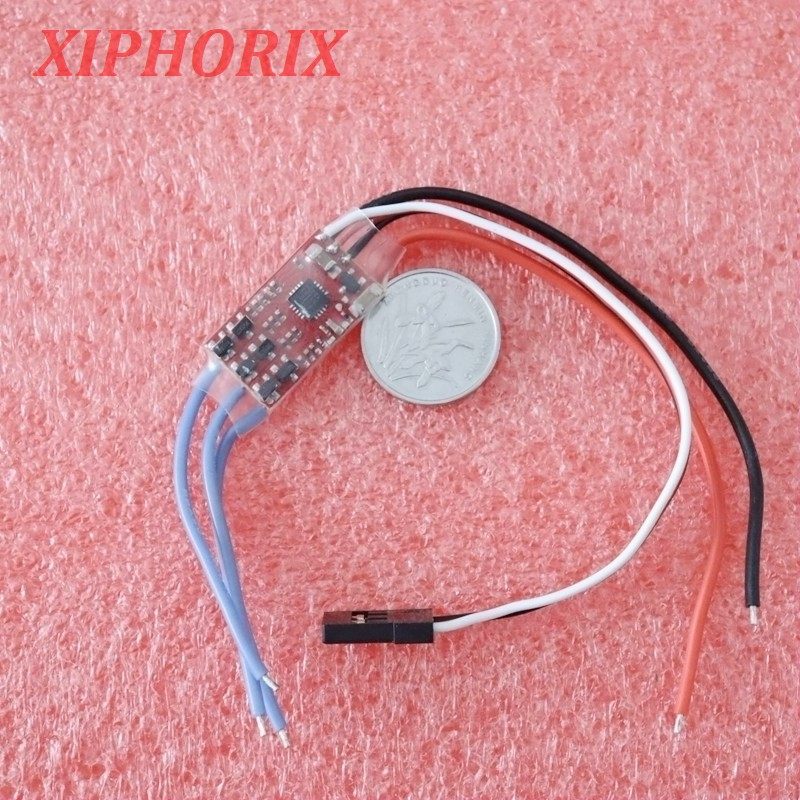

Panorama

Back

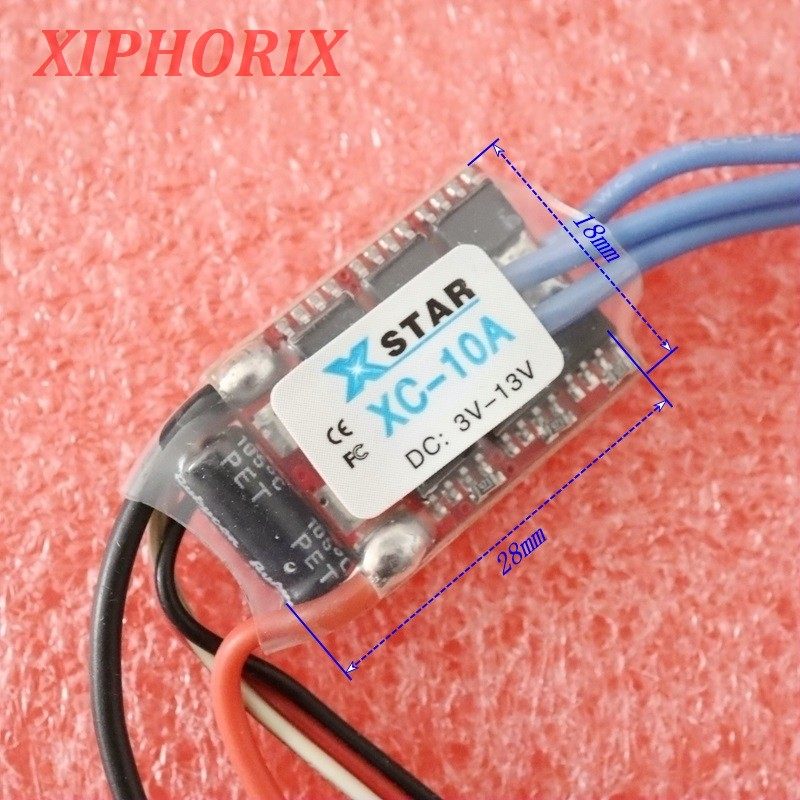

Size

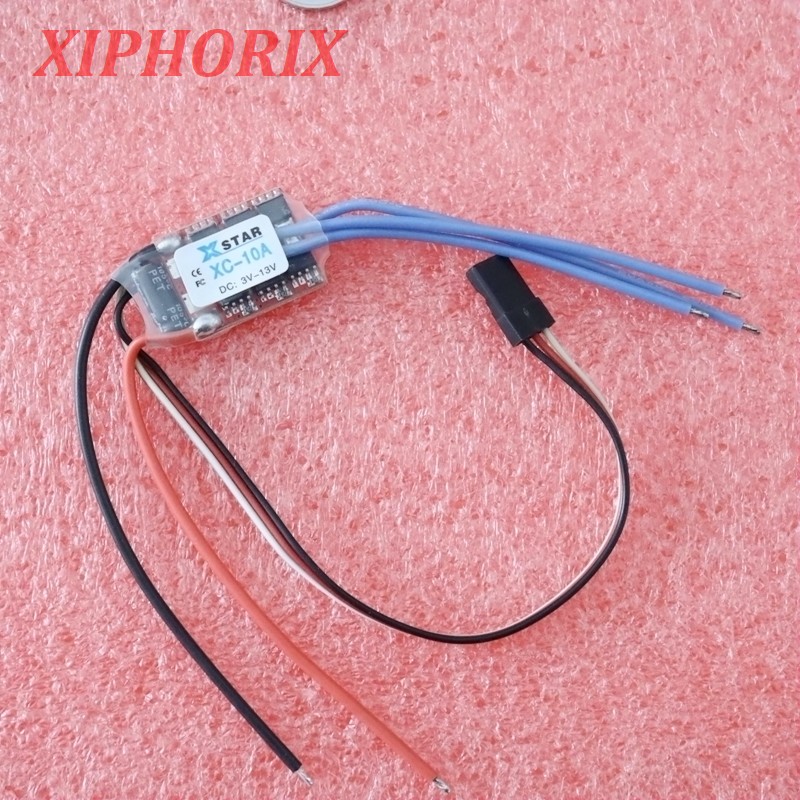

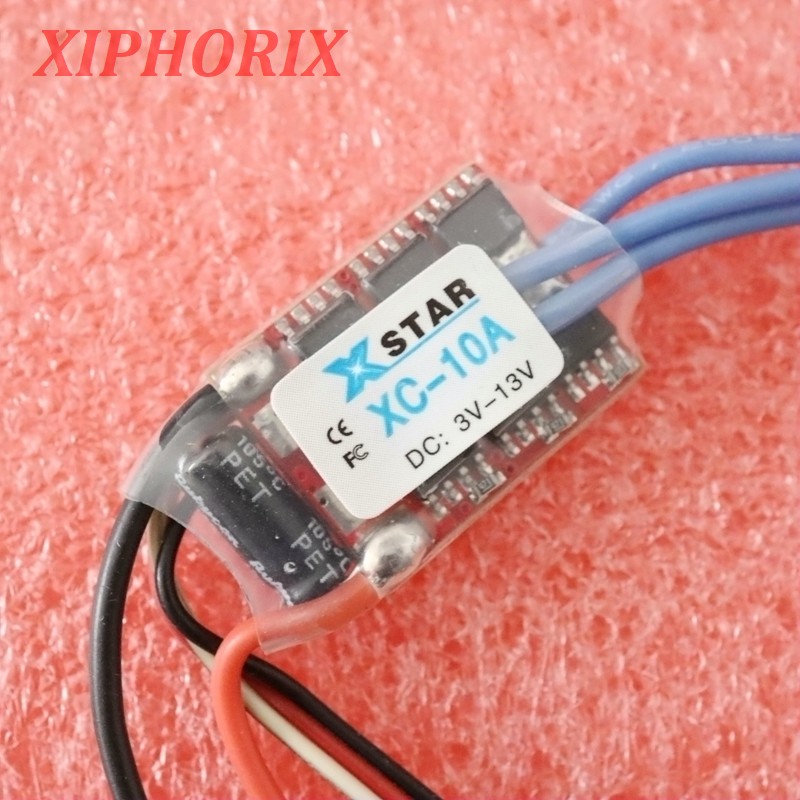

10A Brushless ESC Specification:

​   · Input voltage: 3V-13V (support 1-3S lithium batteries)

   · Continue current: 10A

   · BEC output: 1A /5V (linear)

   · Size( lengthX width X high): 28x18x7  mm

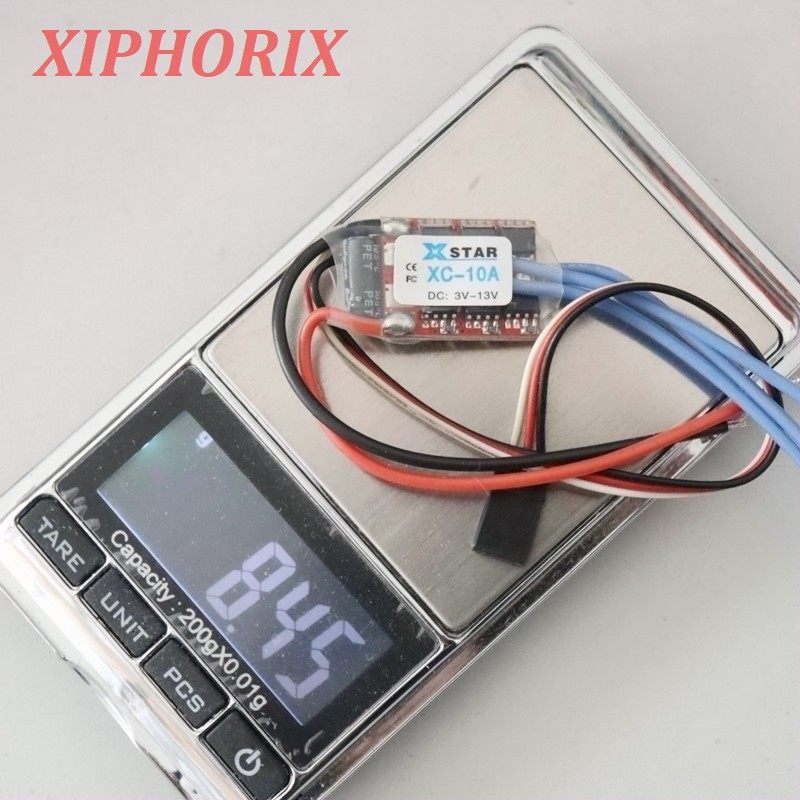

   · Weight: 8.45g

Package

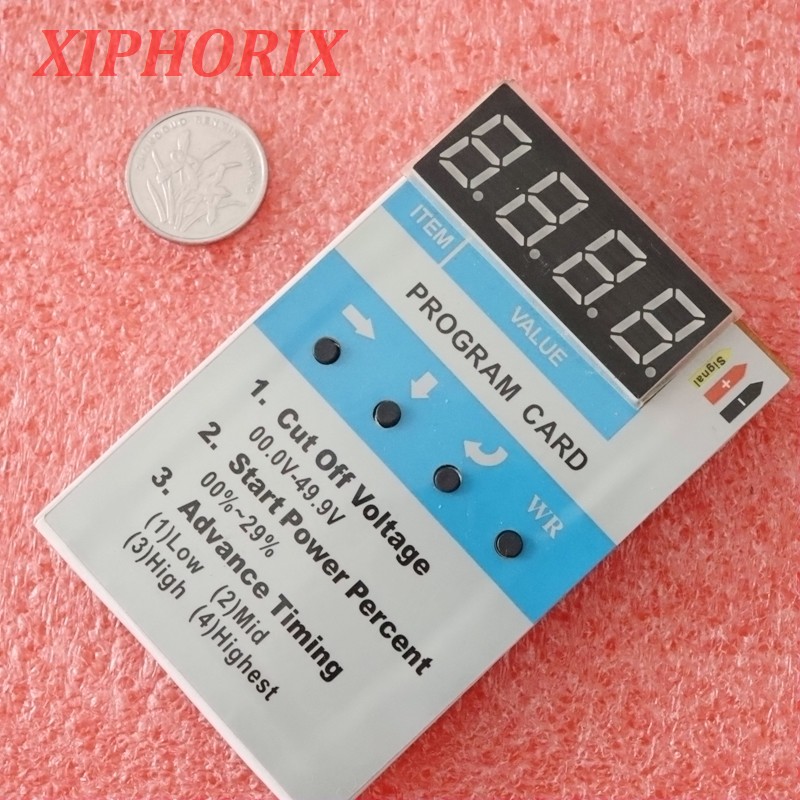

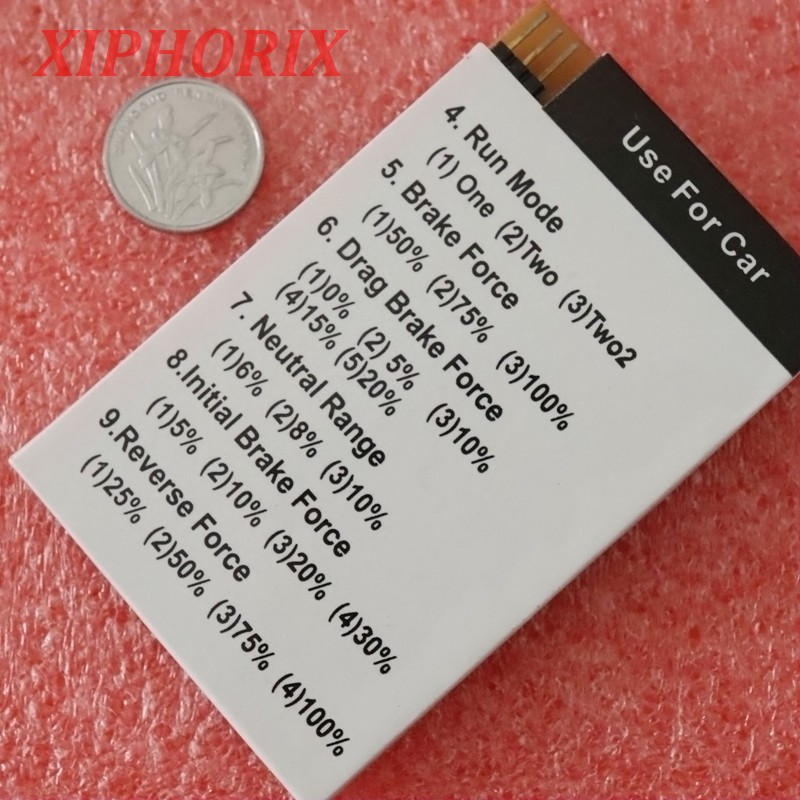

Program Card

Back

Configurable Parameter With Program Card:

  1). Off Voltage: (Low voltage Protection threshold, Cutoff voltage): User can set proper cutoff voltage according to cell quantity in range of 00.0-49.9V, the default is 00.0V.

  Note: System will detect battery cells and calculate proper threshold automatically if this setting is 00.0V,  protection threshold for each Li-XX cell is 2.8V. For example: if the battery pack is 3 cells Li-xx, cutoff voltage will be: 2.8V*3=8.4V.

  2)．Brake Force: 50%, 75%,100%. Default is 100%. The ESC provide proportional brake function. The brake forceis related to the position of the throttle stick. It refers to the maximum brake force when the throttle stick is pushed to the top point of the backward zone.

  3)．Drag Brake: 0、5%,10%,15%,20%. Default is 0. When the throttle stick is located at the neutral  zone,the ESC provide a slight brake force.

  4)．Run Mode: One, Two, Two2. Default is Two2.

One: the car can go forward only, and brake continuously if push the throttle stick to backward zone.

Two: Bi-directional mode, the car go forward when the throttle stick is located at the forward zone,when the         throttle stick is located at the backward zone, the car will go backward, the brake will occur when                 direction change.

Two2: Conditional Bi-directional mode. With this option, the car go backward only when car is stop and                throttle stick is pushed from neutral zone to backward zone. When car isrunning forward, push                    throttle stick to backward zone, car will keep brake until it stops, the throttle stick return the neutral              zone, and push the throttle stick to the backward zone, then the car will go backward.

  5)．Start Force: 20%,25%,30%,35%,40%. Default is 30%. It refers to the maximum force when the car start.

  6)．Timing : low, middle ,high and highest. Default is middle. Low advance timing is recommended for high inductance and low KV motors. High advance timing is recommended for low inductance and high KV motors.

  7)．Neutral Range: 6%,8%,10%.  Default is 8%. Within this zone, the motor will be turned off.

  8)．Initial Brake Force: 5%,10%,20%,30%. Default is 5%. It refers to the brake force when the throttle stick is located at the initial position of the backward zone.

  9)．Reverse Force: 25%,50%,75%,100%. Default is 50%. It refers to the maximum force when car run in reverse direction.
