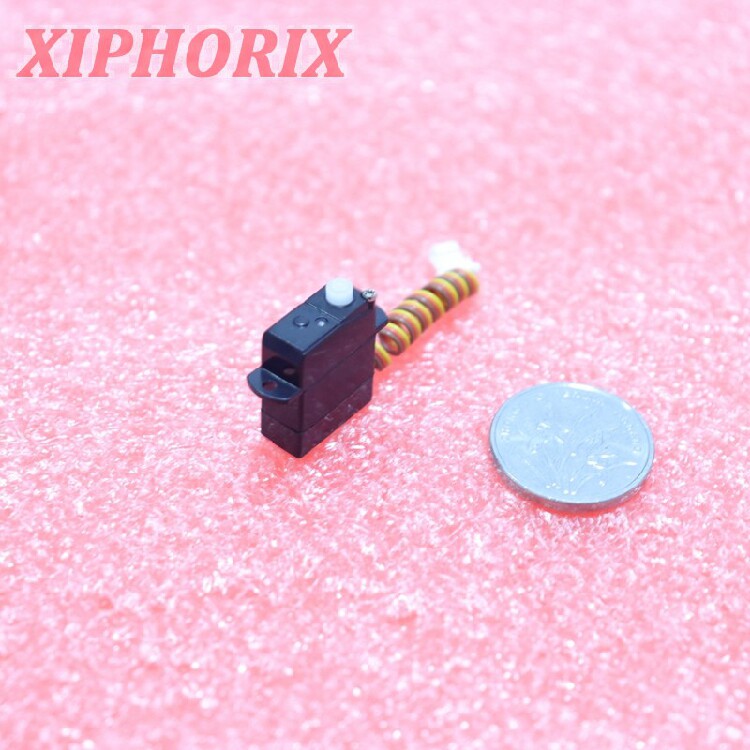

PingZheng 1.7g micro digital servos PZ-15320, Working voltage: 2.5V-4.8V, if it is a GH1.25mmJST plug, the line sequence may be opposite to the receiver line sequence, please be careful when using it!
![](https://img.alicdn.com/imgextra/i2/50458907/O1CN01hi1uCT2FfSOaQL1Jm_!!50458907.jpg)

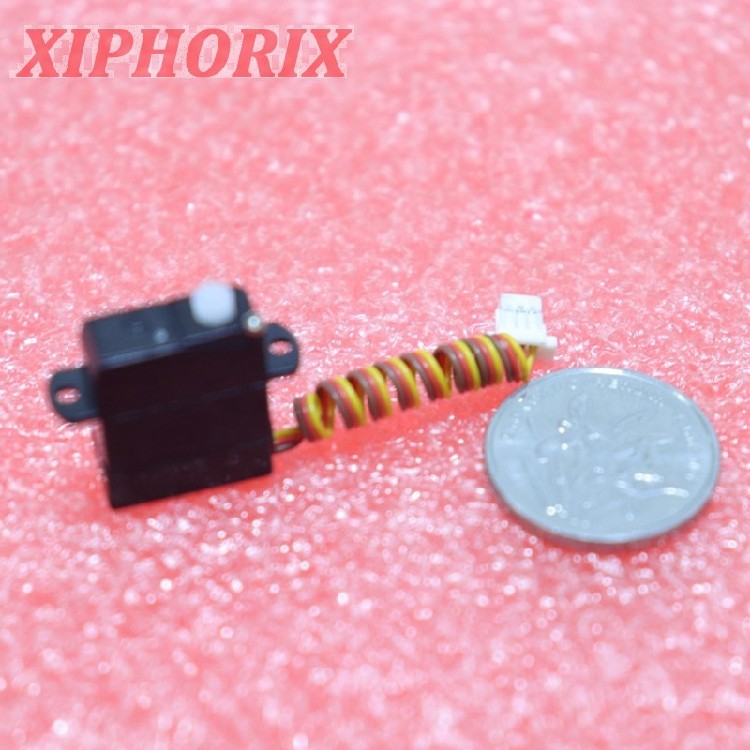

Two interfaces, this is SH1.0mmJST, the micro model of Horizonhobby uses this kind of plug, which looks a little slender.
![](https://img.alicdn.com/imgextra/i4/50458907/O1CN01WCA2Wr2FfSOaQMtiE_!!50458907.jpg)
GH1.25mmJST
![](https://img.alicdn.com/imgextra/i3/50458907/O1CN013jmrcE2FfSOXPnxX0_!!50458907.jpg)

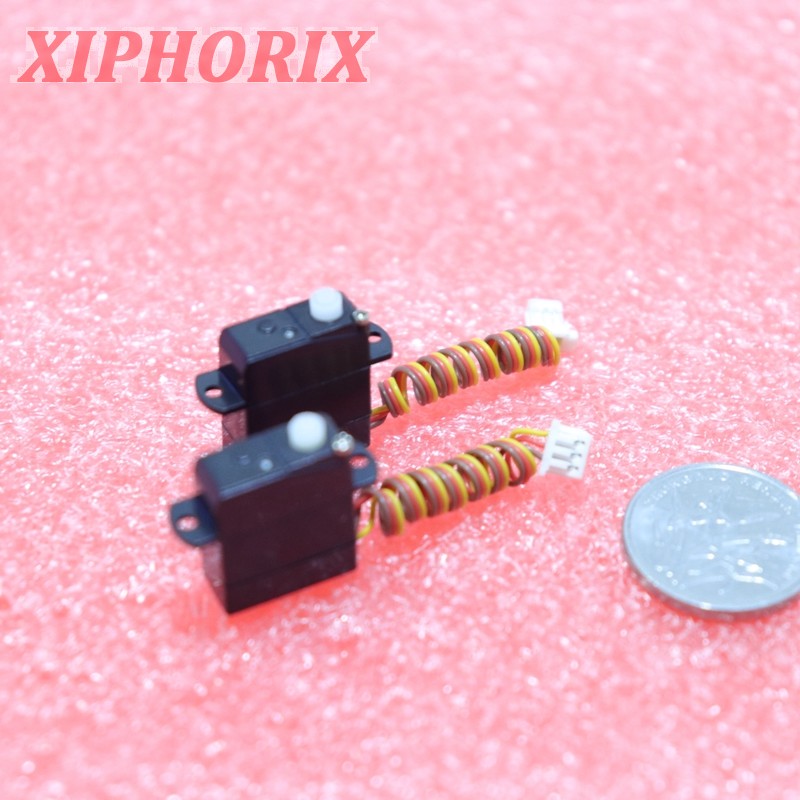

Two interfaces
![](https://img.alicdn.com/imgextra/i2/50458907/O1CN01Crp7KD2FfSOXpxrh2_!!50458907.jpg)

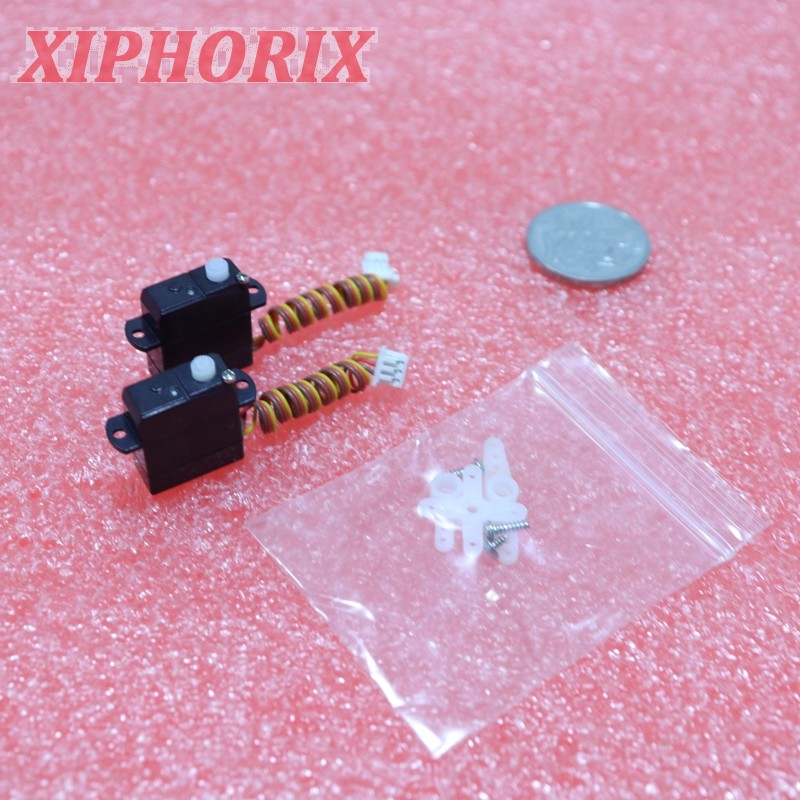

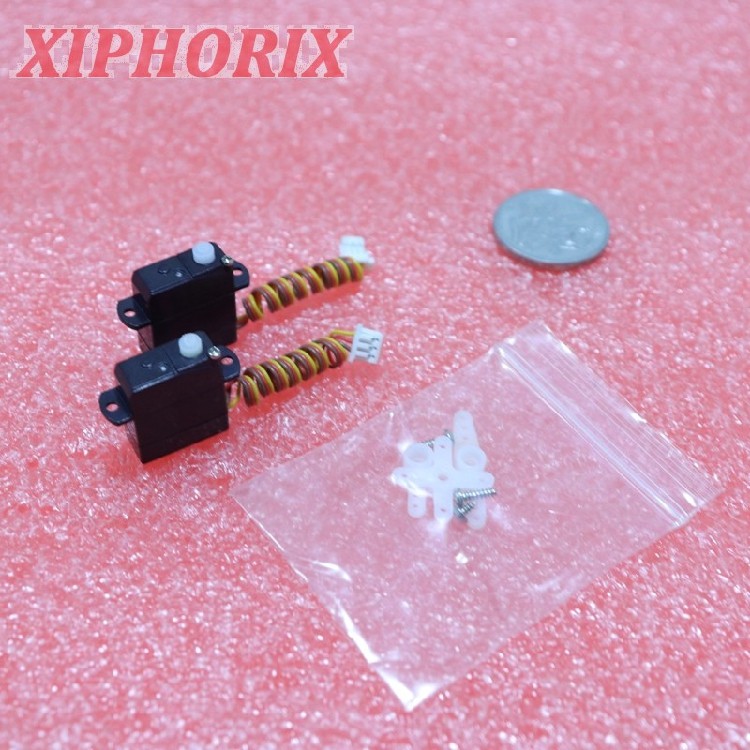

With three kinds of rudder arms
![](https://img.alicdn.com/imgextra/i2/50458907/O1CN01pDjcPR2FfSOdB3duV_!!50458907.jpg)

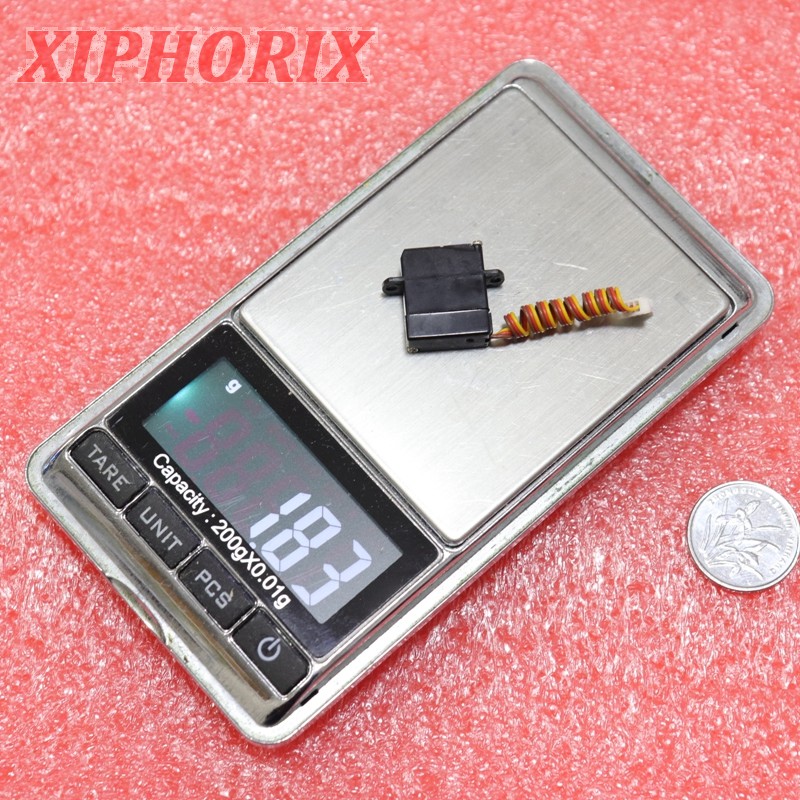

The actual weight is about 1.83g
![](https://img.alicdn.com/imgextra/i3/50458907/O1CN01LZPLMm2FfSOaQMMSH_!!50458907.jpg)

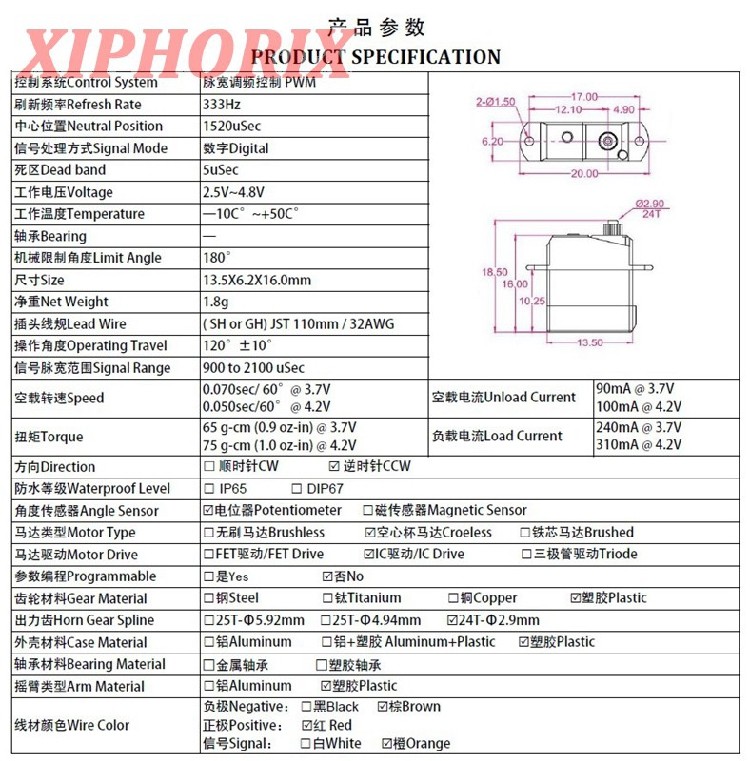

Product Specification
![](https://img.alicdn.com/imgextra/i3/50458907/O1CN01SxtzN12FfSOXPmU0M_!!50458907.jpg)

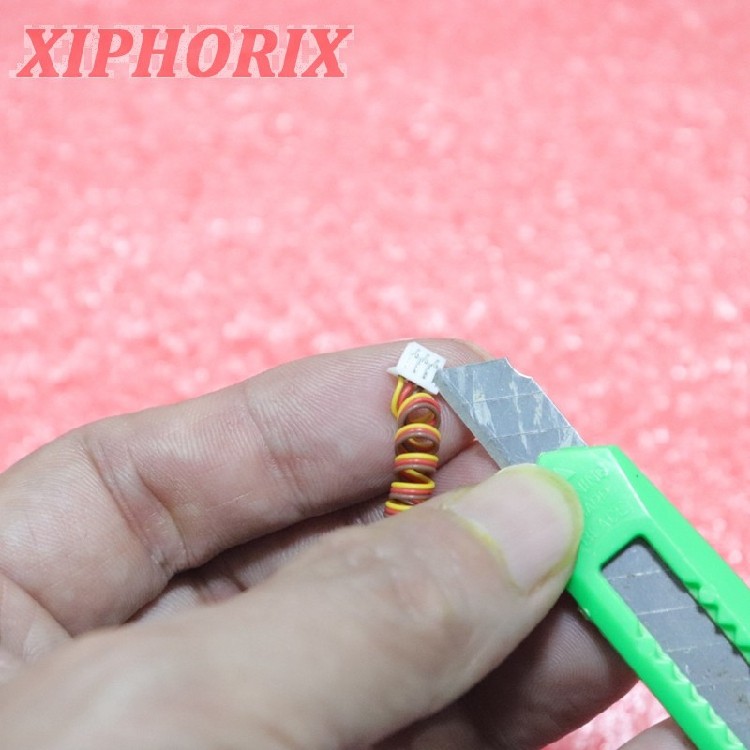

If you need to change the wire sequence, you can use a knife or needle to pick up the white part, and then you can pull out the terminal wire to replace it, pay attention to safety
![](https://img.alicdn.com/imgextra/i4/50458907/O1CN01GTCXQb2FfSOU32R5u_!!50458907.jpg)
Zoom in
![](https://img.alicdn.com/imgextra/i4/50458907/O1CN01QSnaGd2FfSOalrWLG_!!50458907.jpg)
