Gear
-
Plastic Gear
Module 0.3 M0.3 76 Teeth Plastic Gear, Interference Fit 3.0mm Shaft
Description

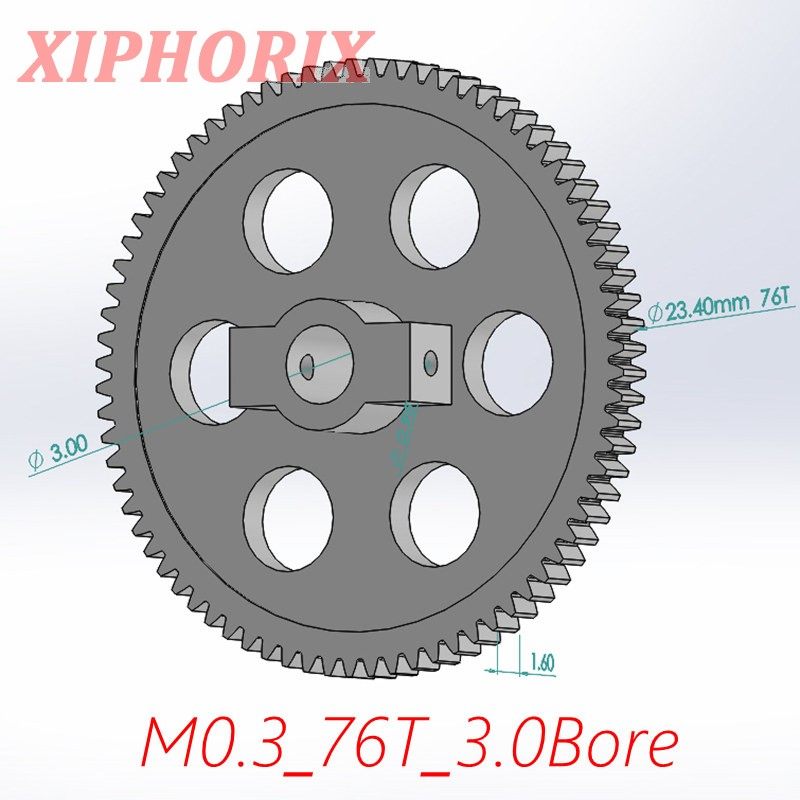

Note:the drawing does not represent the real object, just show the parameters of the gear

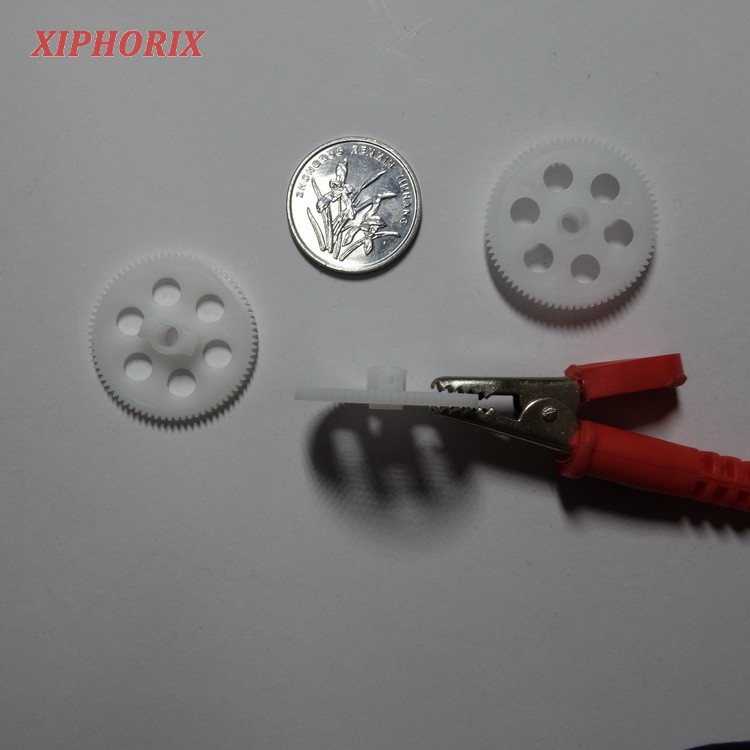

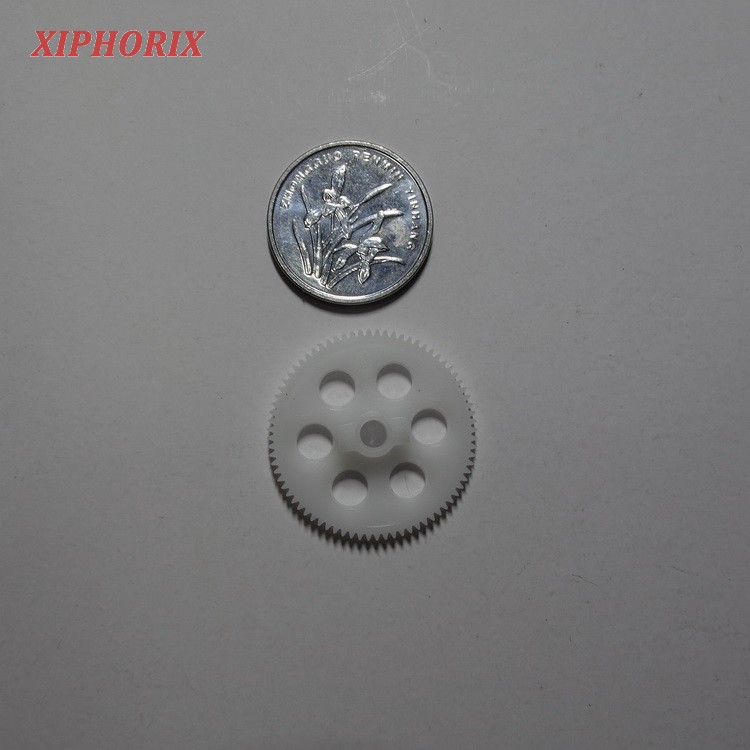

M0.3 76 tooth plastic gear

For 3.0mm shaft interference fit,the hole is 3mm,But there are 0.95mm hole on both sides of the boss, you can fix the shaft with small screw.

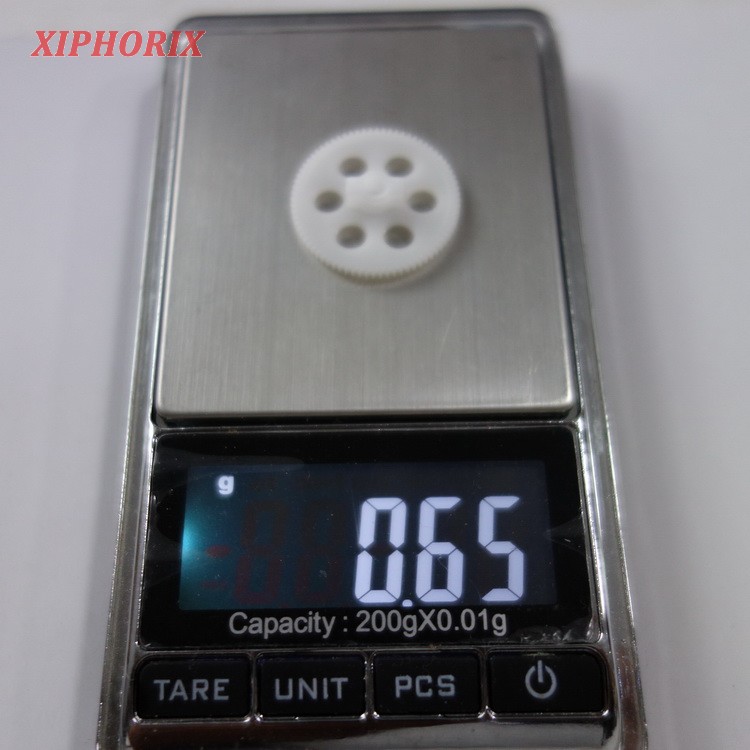

Weight about 0.65g

Features
Gear Modules |
0.3
|
Shaft |
3.0mm
|
