Module 0.3 12/36 Teeth Plastic Double Tooth Gear, Sliding Fit 1.0mm Shaft
Description

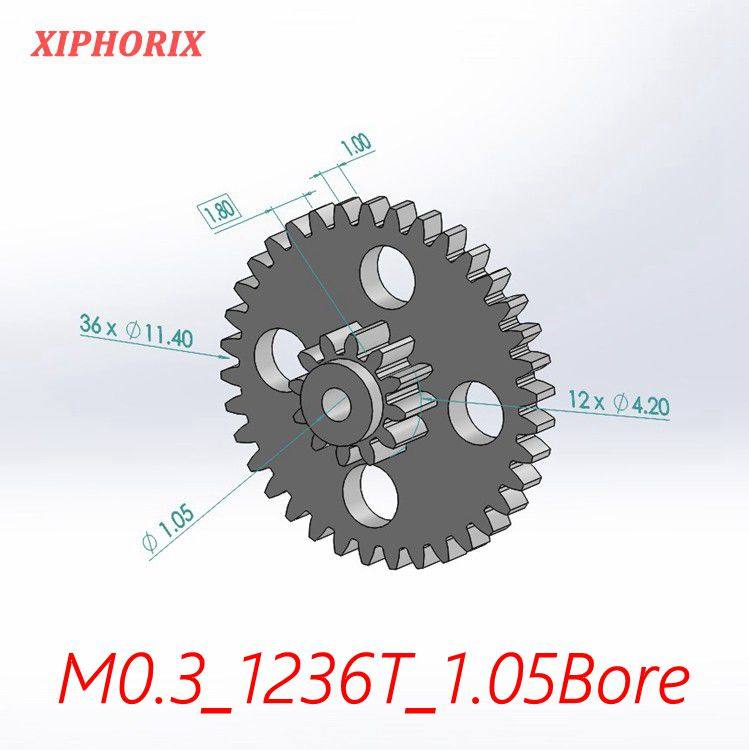

Note:the drawing does not represent the real object, just show the parameters of the gear

Object, M0.3 12/36 teeth plastic double tooth gear, sliding fit 1.0mm shaft, weight 0.14g

36T thickness 1mm

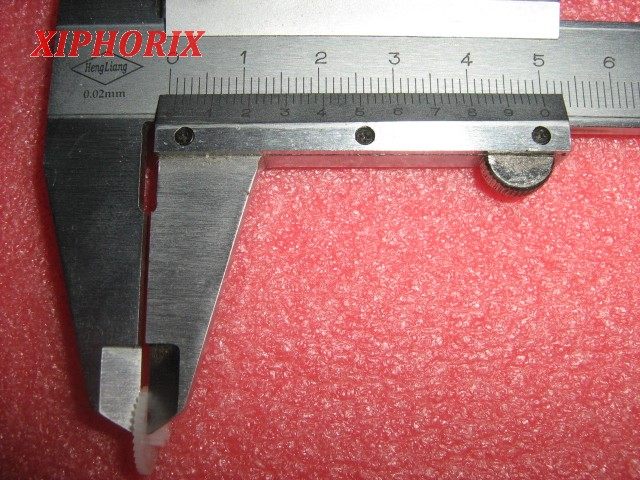

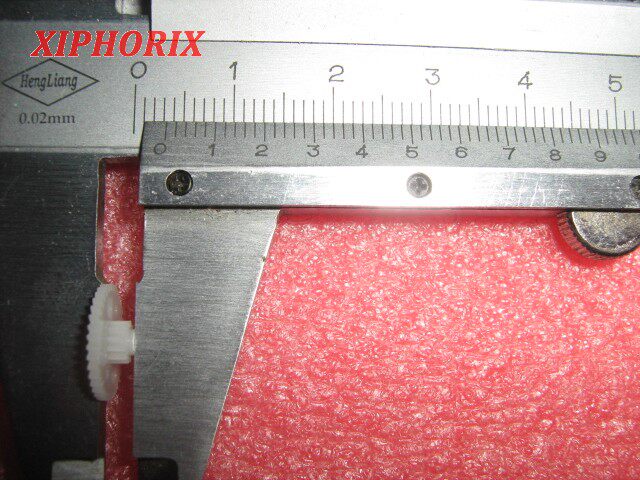

All thickness 3.3mm,the boss 0.5mm

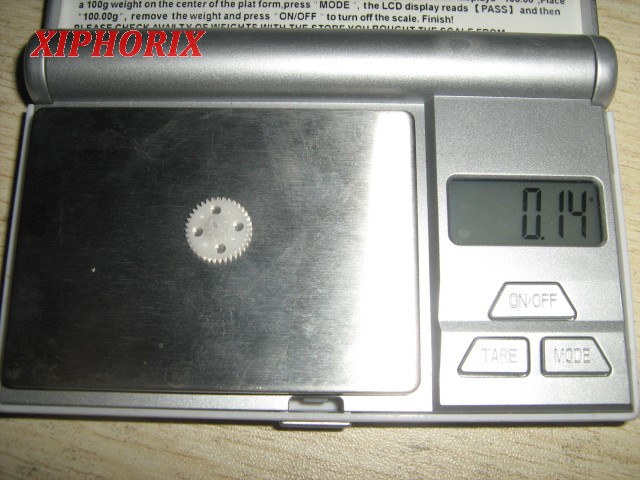

Weight 0.14g

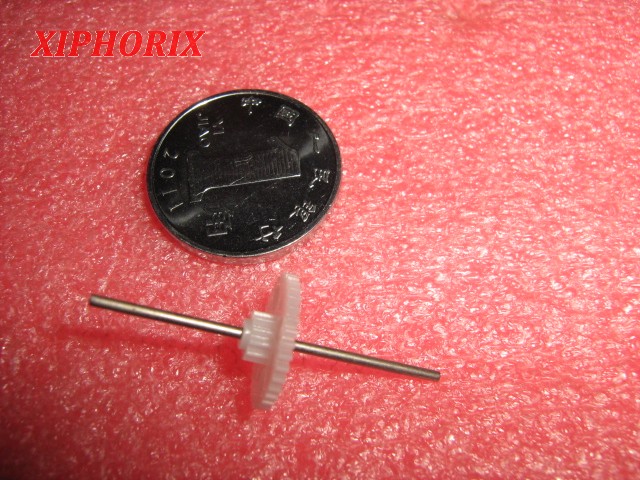

Bore 1.05mm, so sliding fit 1.0mm shaft

Features
Gear Modules |
0.3
|
Shaft |
1.0mm
|
