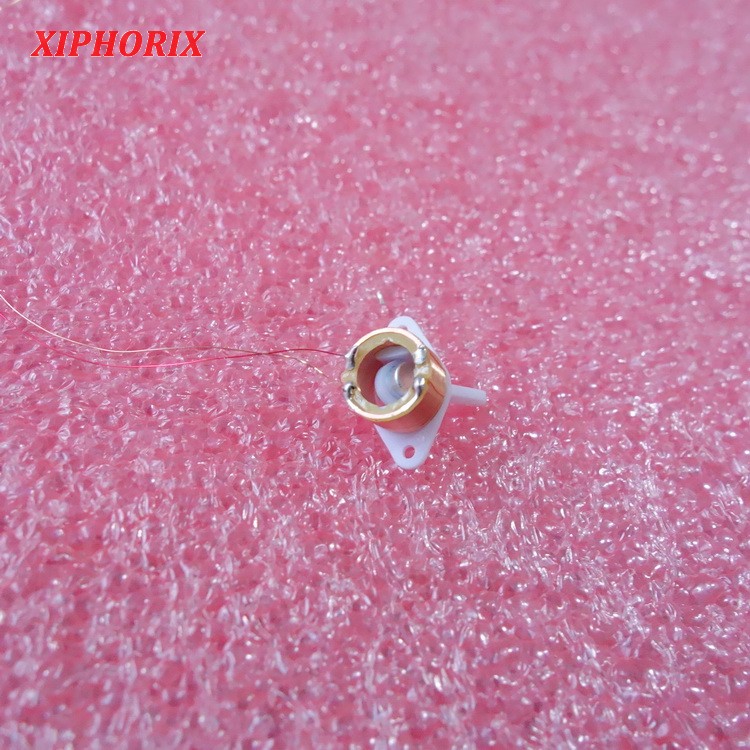

Micro 0.44g arm actuator with PCB pad, The resistance is about 60 ohms, work for 1S(3.7V)Lipo Battery. Don't worry about coil lead break with PCB pad and easy to install, it is designed for the ailerons of micro planes.

The arm, the upper hole move distance is about 7.5mm，the lower hole move distance is about 6mm, the holes in the arms are about 0.6mm, mounting holes are about 0.9mm

The magnet of keeping back needs to be installed by yourself, one 1mm diameter, and one 1.5mm diameter

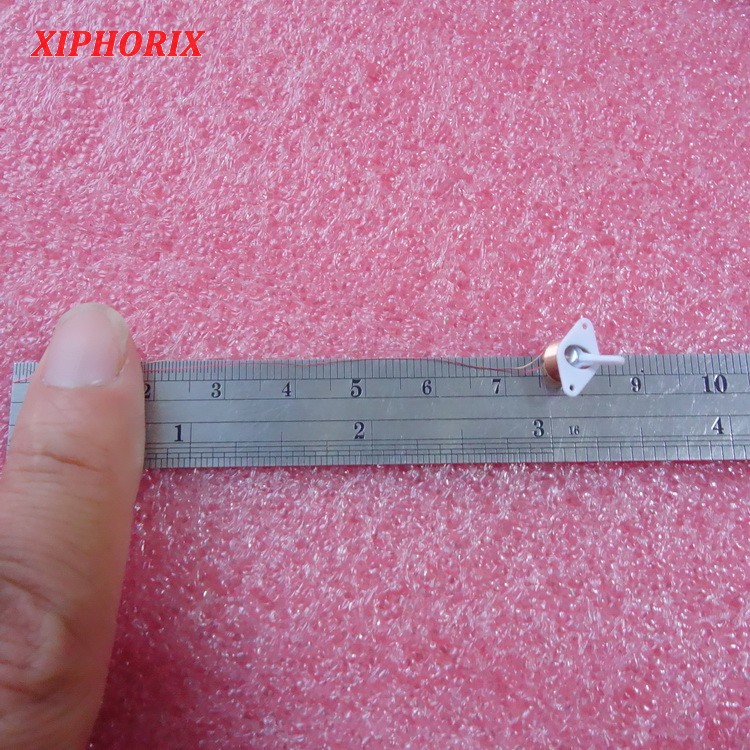

Lead length is about 75mm，Need to solder the plug by yourself.

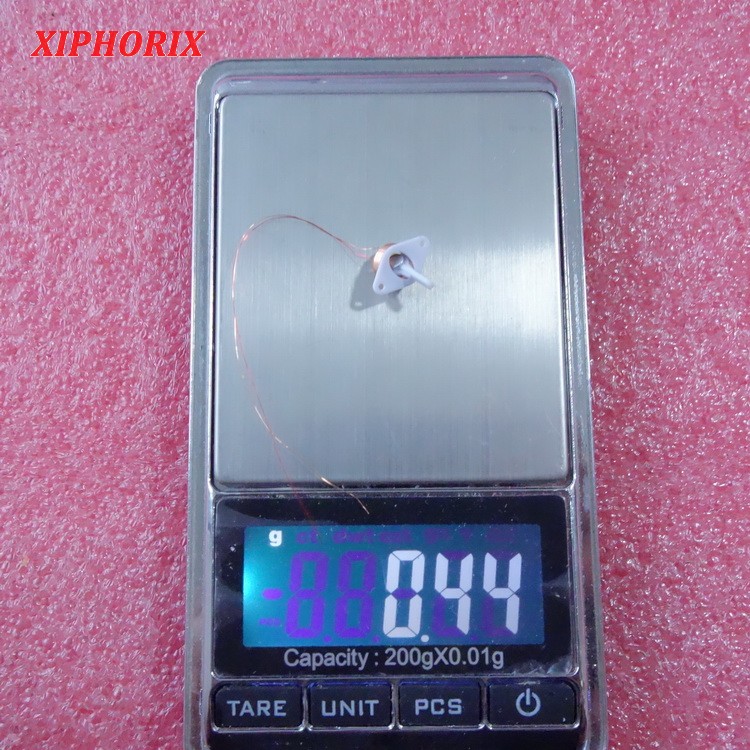

It is about 0.45g without the keeping magnet
