Compatible Multi Protocol,  Support TELEM,2.4G Micro 6-Channel Receiver  Built-in Brushless ESC RX62HE Series Receiver

About the compatible protocols, note the suffix of the receiver

With A is compatible  with AFHDS（A1）or AFHDS-2A（A2）protocol of FlySky , With D is compatible with DSMX/2 protocol of Horizonhobby , Spektrum etc. With F is compatible with D8 (F1) or D16 (F2) protocol of Frsky, With H is compatible with the protocol of HUBSON,  With S is compatible with S-FHSS protocol of Futaba.  Please select the appropriate receiver according to your transmitter protocol.

Votage: 2-3S Lipo(7.4-11.1V), Built in 7A/2S (5A/3S)Brushless ESC，Size: 24.5(L) X 16(W) X 6.5(H) mm，Built in DCDC reduction voltage circuit (2.2A / 3.9v), supporting 1.7g/1.9g micro servo, and linear servo. The default mode of dual aileron model (reverse aileron) is on, and the remote control distance is about 300M (open and unobstructed).

Binding：The receiver will enter binding mode automatically after powered and no signal for 15 seconds (slow flashing LED light turns to fast flashing), then complete the binding operation according to your transmitter binding manual.

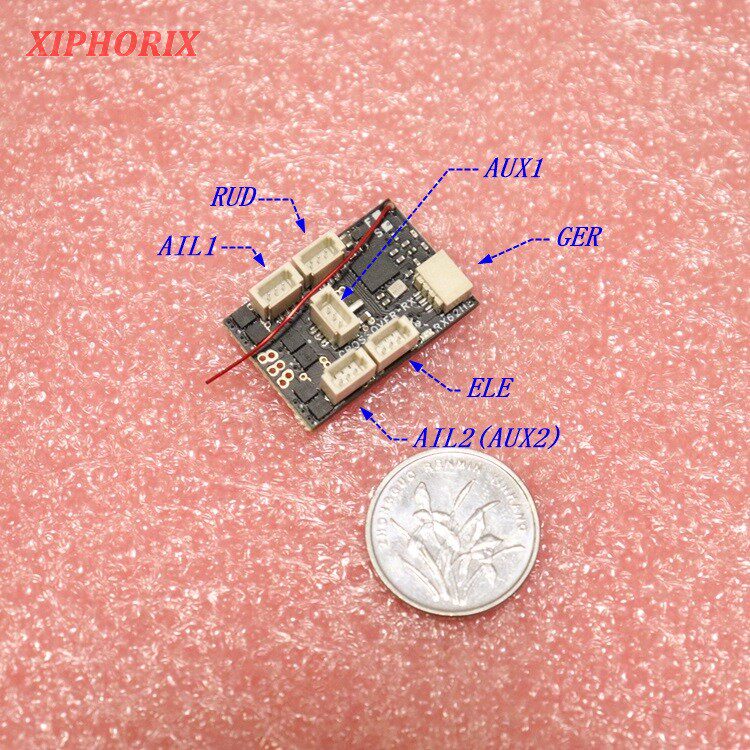

Use 1.0mm JST connection，same as horizon-hobby micro model interface，give 4 sets of 1.0mm JST 3P plug cable

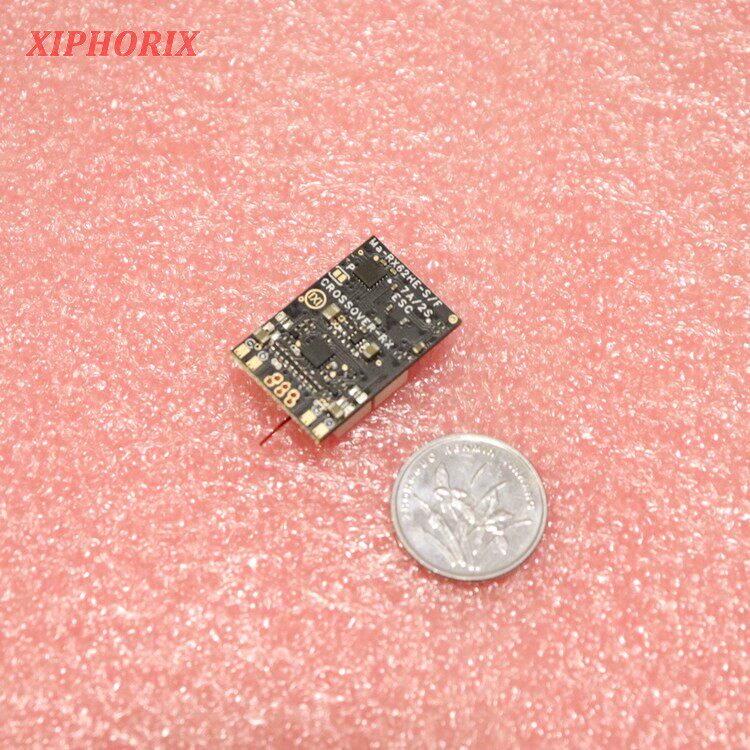

Back

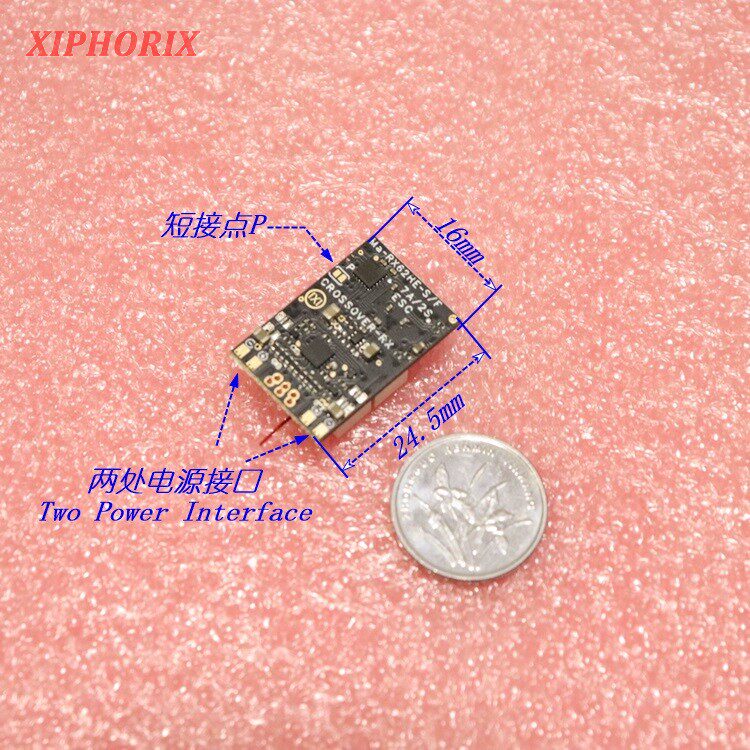

There are two power supply welding interfaces.The default mode of dual aileron model (reverse aileron) is on. If the P point is short circuited, the double aileron mode will be turned off, and the reverse aileron AIL2 will become AUX2 output

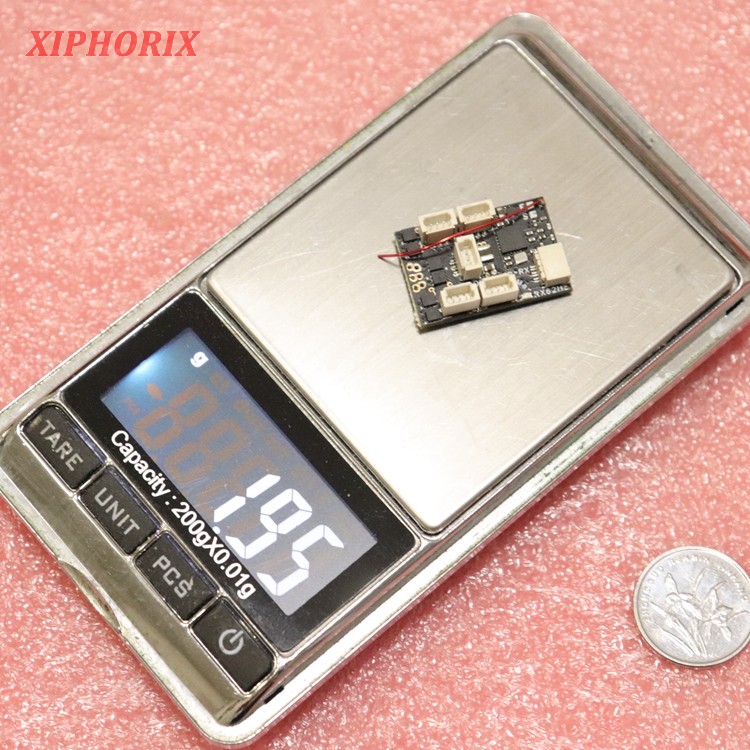

Weight 1.95g

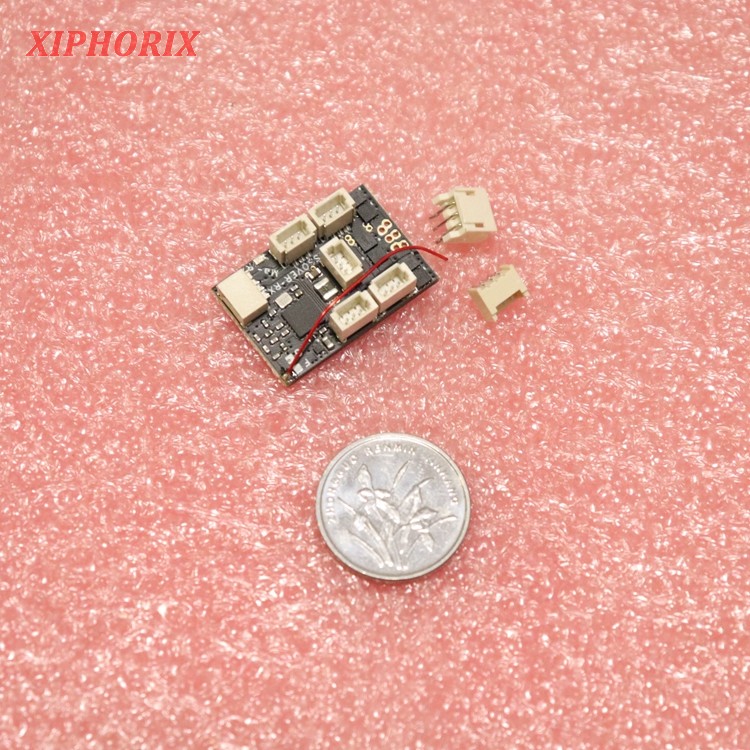

Give 2 kind of 3P JST Socket，1.25mm and 1.5mm
