The MXR62 receiver has been upgraded to V3 and the receiver has been upgraded to 8 channels (12/7, 2023)!!

Note that this series of receivers S-FHSS protocol is not compatible with automotive (pistol-controlled) transmitters, the original design is intended to be used in airplane models, and the built-in is a one-way brushed ESC!! When the S9 and S10 interfaces are short-circuited, the S8 interface outputs PPM signals, indicating that the marked 12/14/16 channels refer to the SBUS output channels, and the PWM and PPM channels are both 8 channels!!

Compatible Multi Protocol, Support TELEM, PPM/SBUS signal can be output, 2.4G Micro 8-Channel Receiver  Built-in 1S 5A Brushed ESC,  Work Votage: 3-4.35V, Size: 12.5(L) X 10(W) X 2.5(H) mm

About the compatible protocols, note the letters behind the receiver

With A is compatible with  AFHDS-2A (A2) protocol of FlySky , With D is compatible with DSM2/X protocol of Horizonhobby , Spektrum etc. With F is compatible with D8 (F1) \FRSKY-D16 (F2)\ ACCST-D16(F3)protocol of Frsky,  With S is compatible with S-FHSS protocol of Futaba.  Please select the appropriate receiver according to your transmitter protocol.

This is compatible with the S/F protocol receiver

Binding: The receiver goes in binding mode automatically after powered on and no signal for 15 seconds (slow flashing LED light turns to fast flashing), then complete the binding operation according to your transmitter binding manual. LED of receiver is on and binding is completed.

The TELEM function: It can realize the real-time monitoring of battery voltage, receiver working voltage, receiver signal strength and receiver working temperature. It also needs the supportion of transmitter, so that you can master the working status of receiver and battery in real time. Note: the distance of the TELEM function is related to the transmitter. It is normal that the working distance of the receiver is much higher than the TELEM function.

Start-Lock Function: It can prevent brushed motor starting by mistake.  For example the throttle stick is not at the lowest position when the receiver is powered on.When the throttle stick  is at the lowest position for 2 seconds, as soon as the receiver gets the signal, Start-Lock will be released then, the brushed motor can work when the throttle stick is pushed.

Back

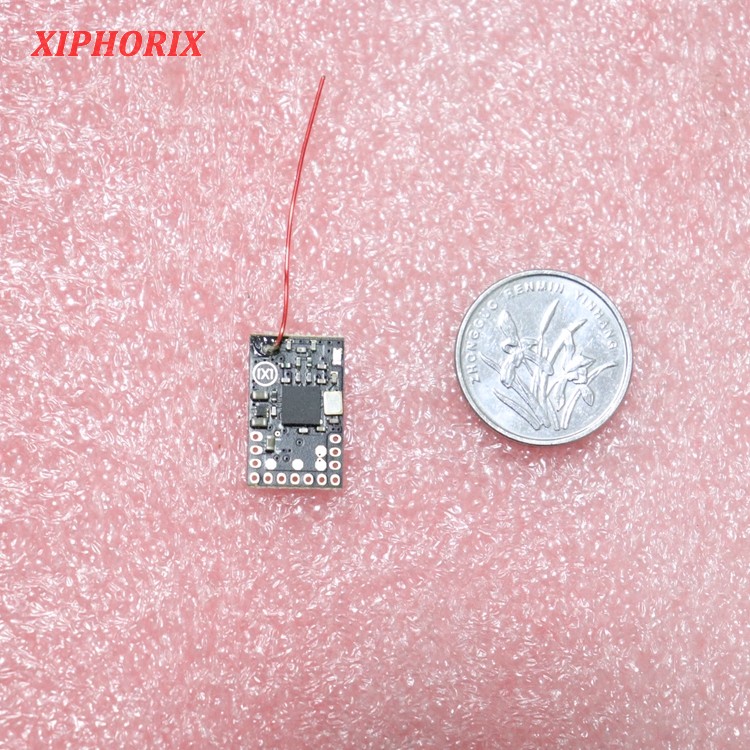

Detail

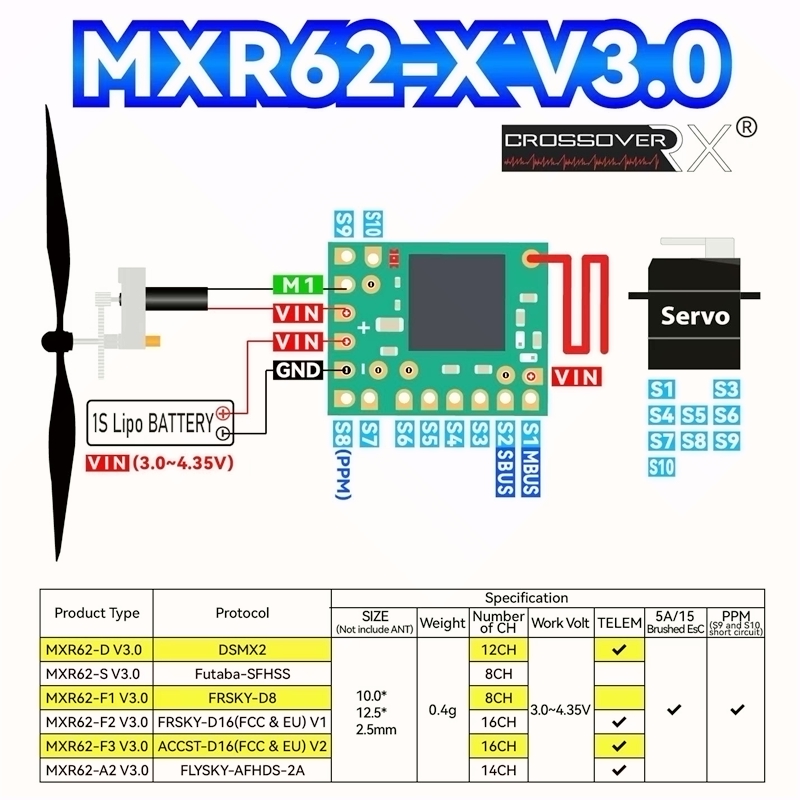

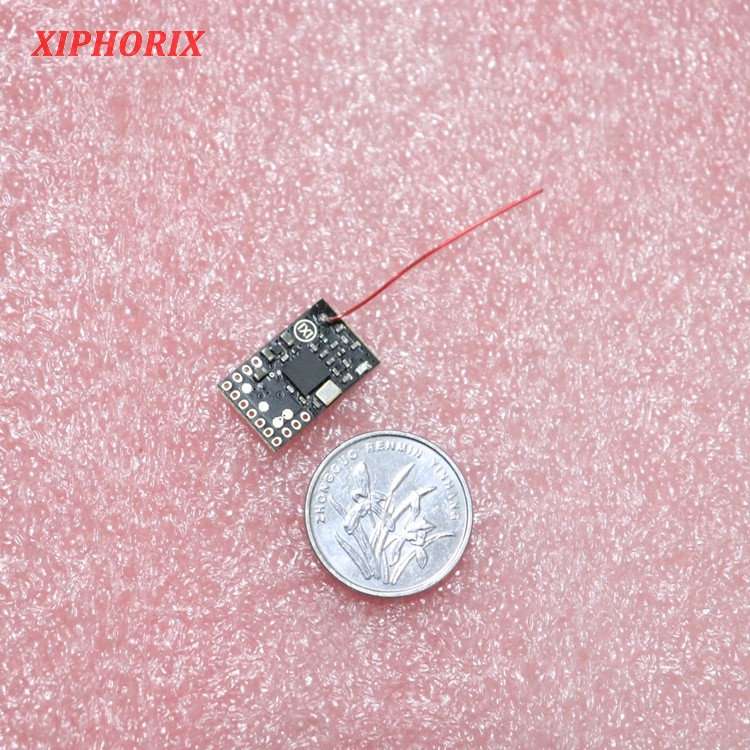

The interface

Three receivers using different 2.4G communication protocol chips, with letter markings

The weight of the receivers is slightly different due to the receiving chip, The weight of the receiver compatible with DSM2/X is 0.42g.

The weight of the receiver compatible with Futaba S-FHSS or FRYSKY D series is 0.37g.

The weight of the receiver compatible with FlySky AFHDS-2A is 0.36g.

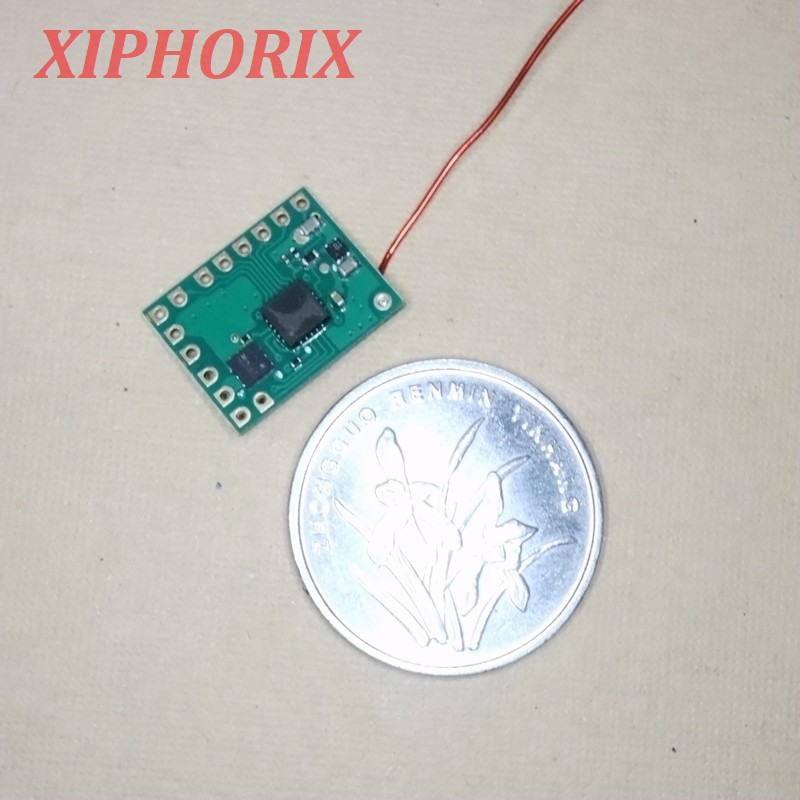

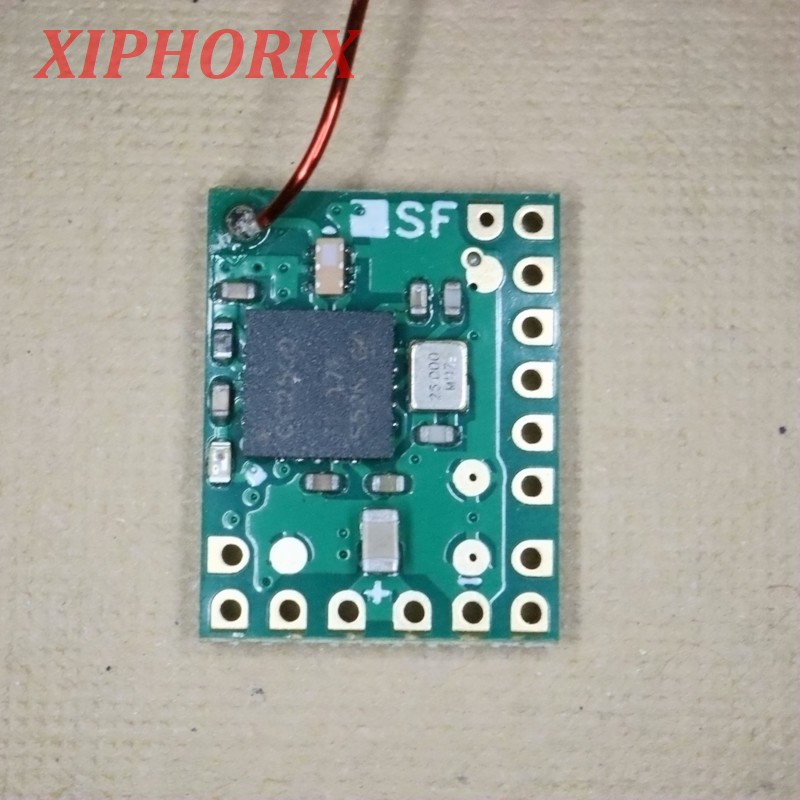

Compare the size of the two version MXR62 receivers

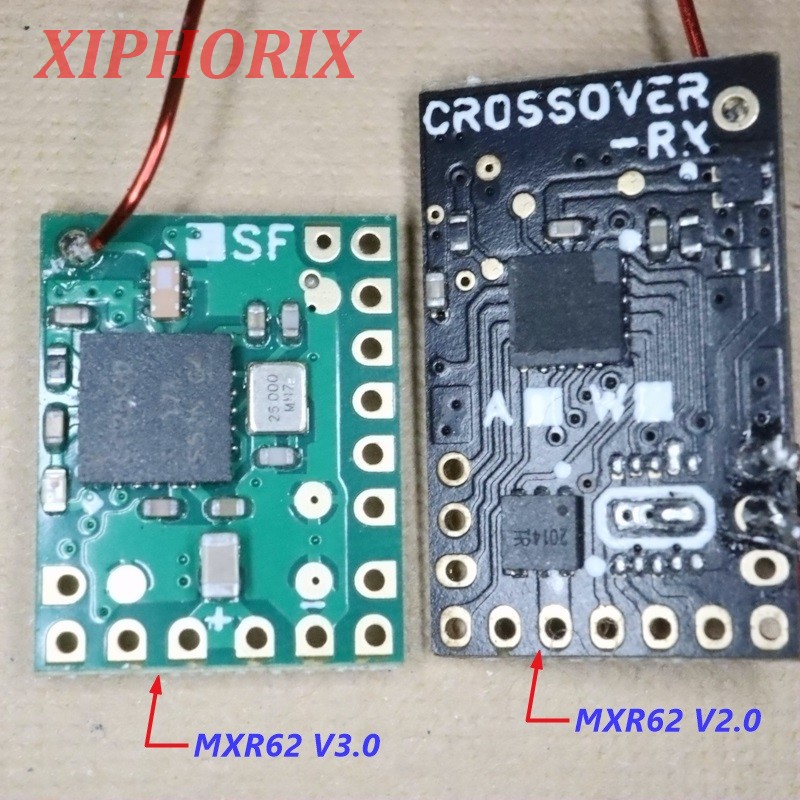

Comparison of the V3 version of the MXR62 receiver and the RX32M receiver

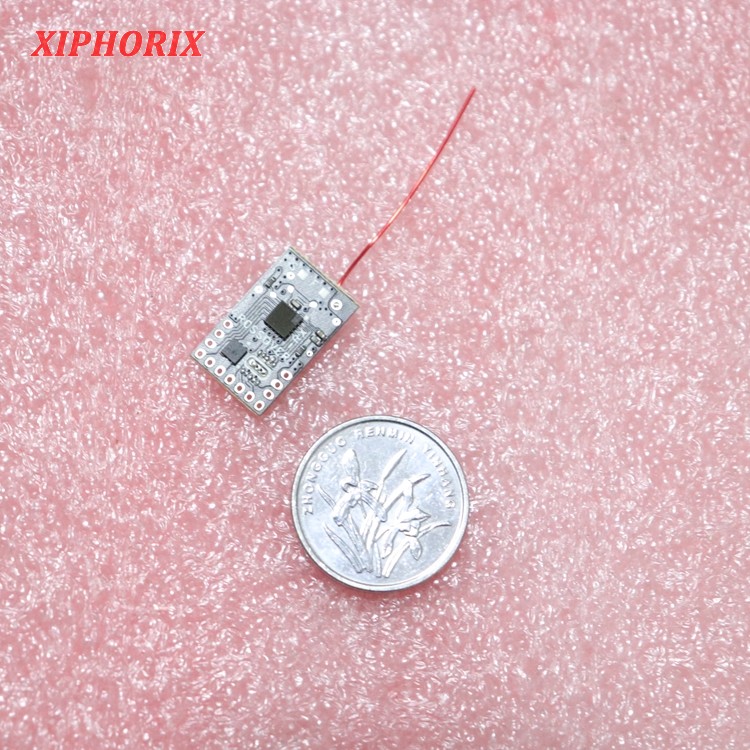

The following is an introduction to the V2 version MXR62 receiver

Compatible Multi Protocol, Support TELEM(with "+"Version), 2.4G Micro 5-Channel Receiver  Built-in 1S 5A Brushed ESC,  Work Votage: 3-5V, Size: 16.3(L) X 10(W) X 2.5(H) mm. If CH4 connected to GND, CH1 will be output PPM signal.

About the compatible protocols, note the letters behind the receiver

With A is compatible with AFHDS(A1) or AFHDS-2A (A2) protocol of FlySky , With D is compatible with DSMX/2 protocol of Horizonhobby , Spektrum etc. With F is compatible with D8 (F1) or D16 (F2) protocol of Frsky, With H is compatible with the protocol of HUBSON,  With S  is compatible with S-FHSS protocol of Futaba.  Please select the appropriate receiver according to your transmitter protocol.

 Binding: The receiver goes in binding mode automatically after powered on and no signal for 15 seconds (slow flashing LED light turns to fast flashing), then complete the binding operation according to your transmitter binding manual. LED of receiver is on and binding is completed.

The TELEM function: it can realize the real-time monitoring of battery voltage, receiver working voltage, receiver signal strength and receiver working temperature. It also needs the supportion of transmitter, so that you can master the working status of receiver and battery in real time. Note: the distance of the TELEM function is related to the transmitter. It is normal that the working distance of the receiver is much higher than the TELEM function.

Start-Lock Function: It can prevent brushed motor starting by mistake.  For example the throttle stick is not at the lowest position when the receiver is powered on.When the throttle stick  is at the lowest position for 2 seconds, as soon as the receiver gets the signal, Start-Lock will be released then, the brushed motor can work when the throttle stick is pushed.

Back

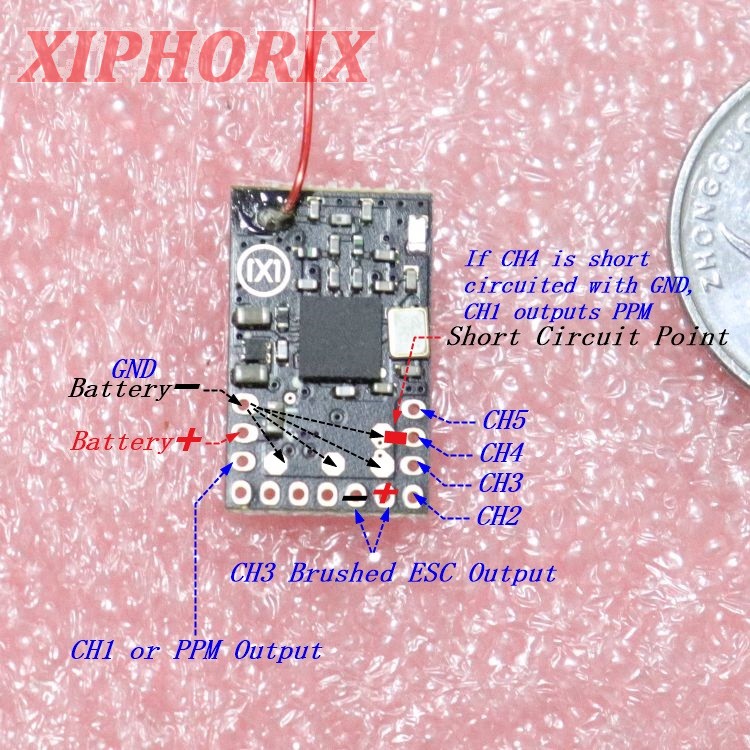

Interface, There are many negative electrodes,  at PWM mode, CH1---AIL, CH2---ELE, CH3---THR, CH4---RUD, CH5---AUX1

When the receiver loses the control signal, the throttle (CH3) will clear 0 (value is 850), ch1-ch2-ch4 will return to center (value is 1500), and the output of other channels will remain unchanged

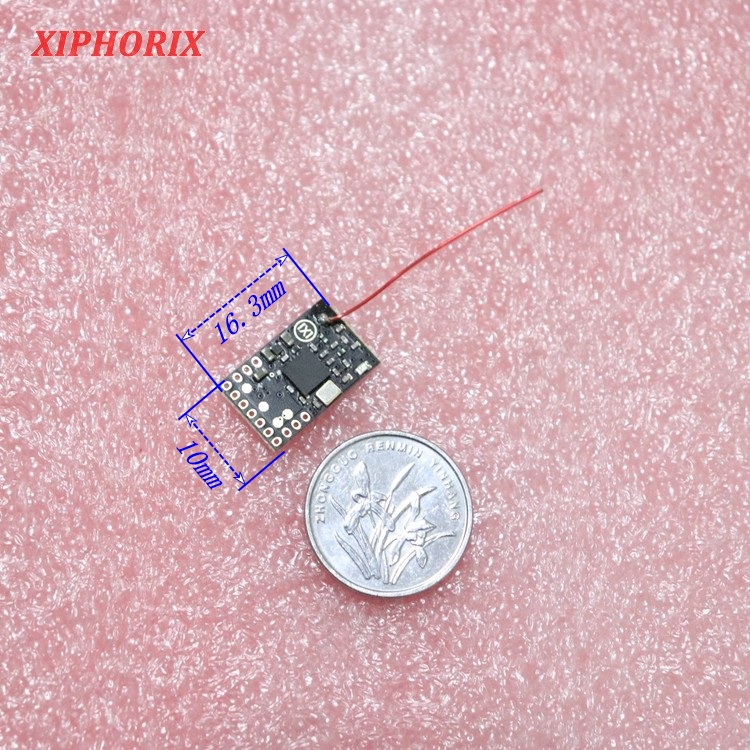

Size

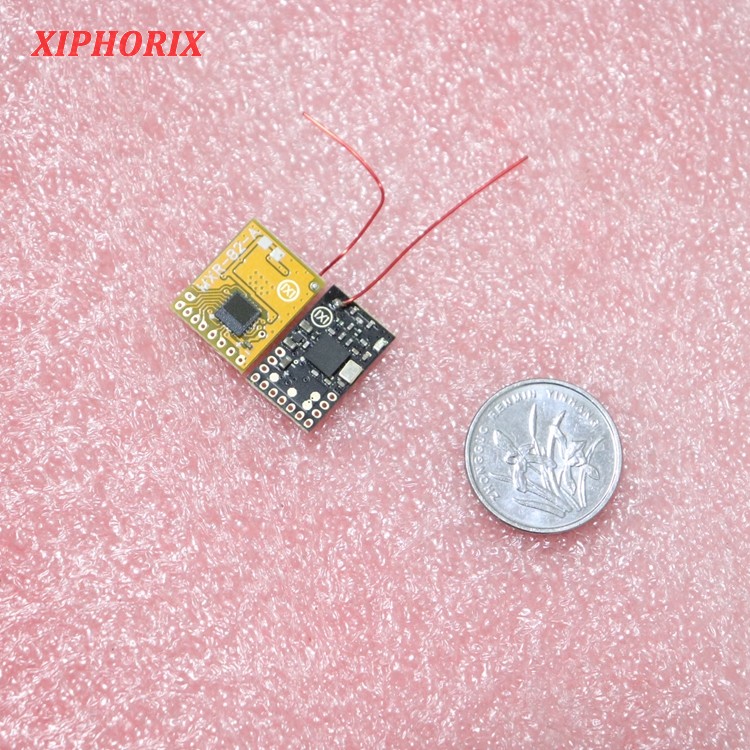

Compared with the  82 series, it is a little narrower and longer

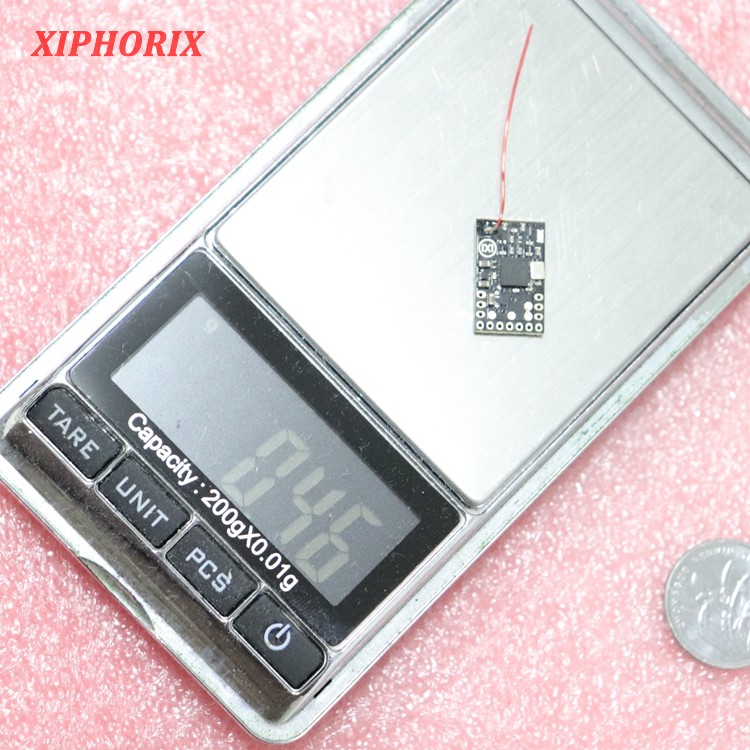

It is about  0.46g
