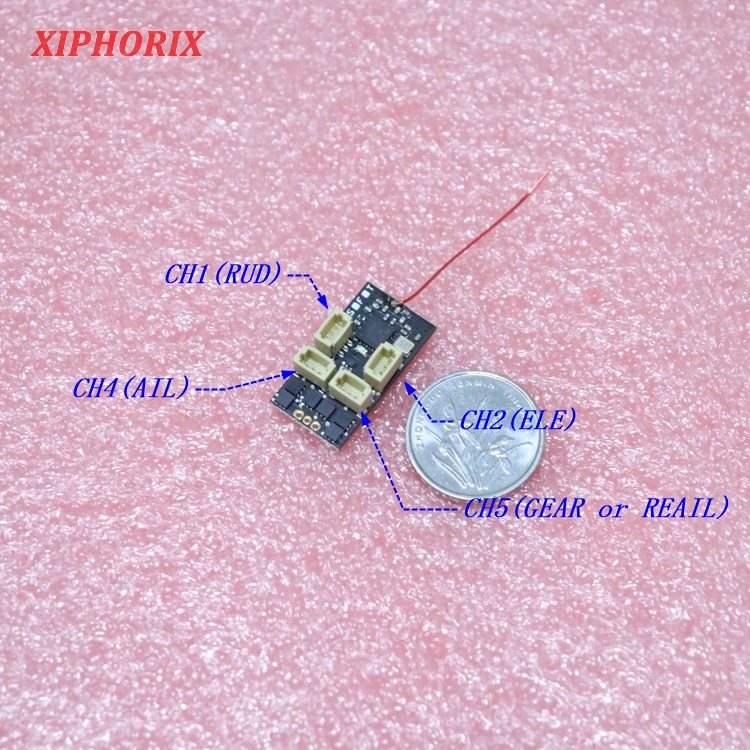

Compatible Multi Protocol, Support TELEM(with "+"Version), 2.4G Micro 5-Channel Receiver  Built-in 1S 5A Brushless ESC, Channel 5 can change  to reverse aileron by short circuited P, Votage: 1S Lipo(3.3-4.35V), Size: 22.5(L) X 12(W) X 6.5(H) mm

About the compatible protocols, note the letters behind the receiver

With A is compatible with AFHDS(A1) or AFHDS-2A (A2) protocol of FlySky , With D is compatible with DSMX/2 protocol of Horizonhobby , Spektrum etc. With F is compatible with D8 (F1) or D16 (F2) protocol of Frsky, With H is compatible with the protocol of HUBSON,  With S  is compatible with S-FHSS protocol of Futaba.  Please select the appropriate receiver according to your transmitter protocol.

Binding：The receiver will enter binding mode automatically after powered and no signal for 15 seconds (slow flashing LED light turns to fast flashing), then complete the binding operation according to your transmitter binding manual. LED of receiver is on and binding is completed.

About the TELEM function: it can realize the real-time monitoring of battery voltage, receiver working voltage, receiver signal strength and receiver working temperature. It also needs the supportion of transmitter, so that you can master the working state of receiver and battery in real time. Note: the distance of the TELEM function is related to the transmitter. It is normal that the working distance of the receiver is much higher than the TELEM function.

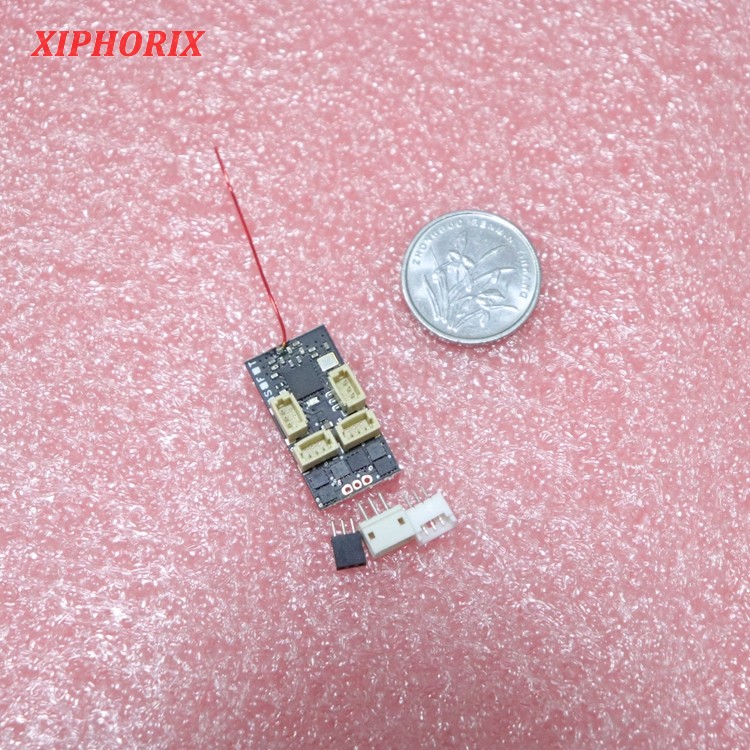

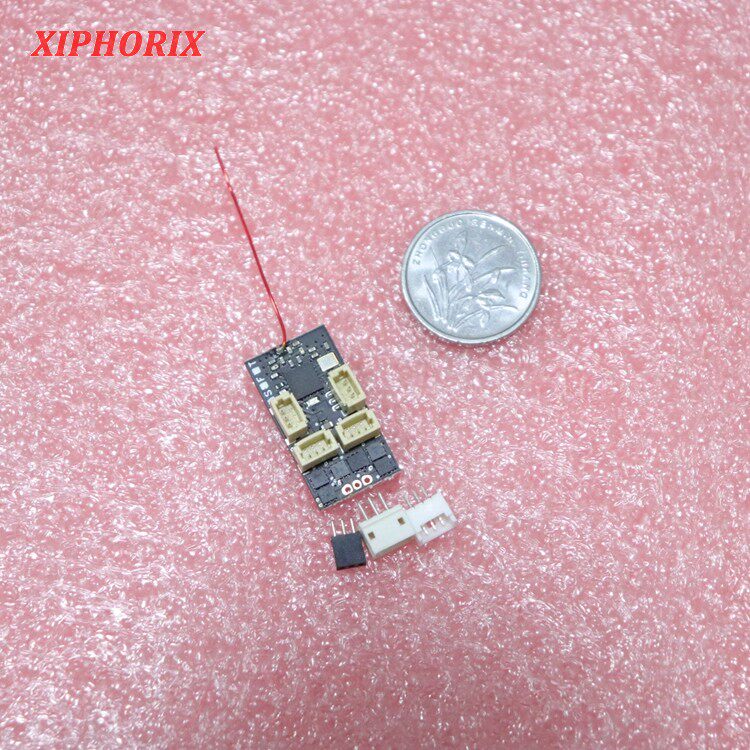

Use 1.0mm JST connection，same as horizon-hobby micro model interface，give 4 sets of 1.0mm JST 3P plug cable

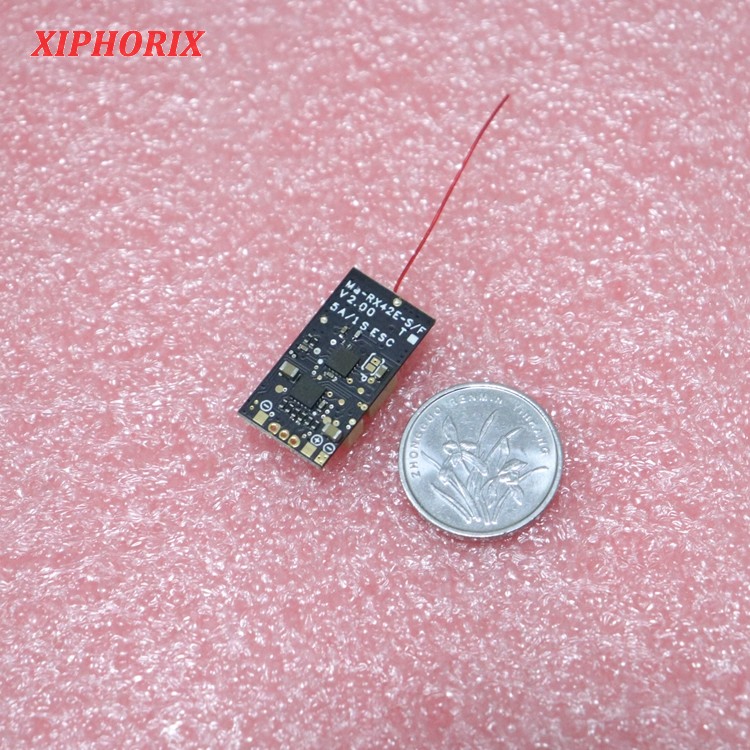

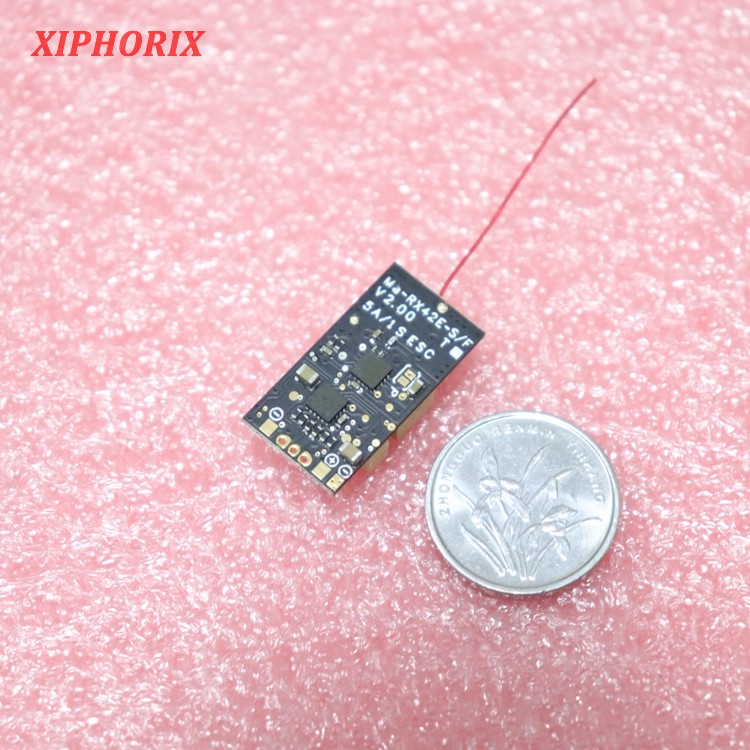

Back

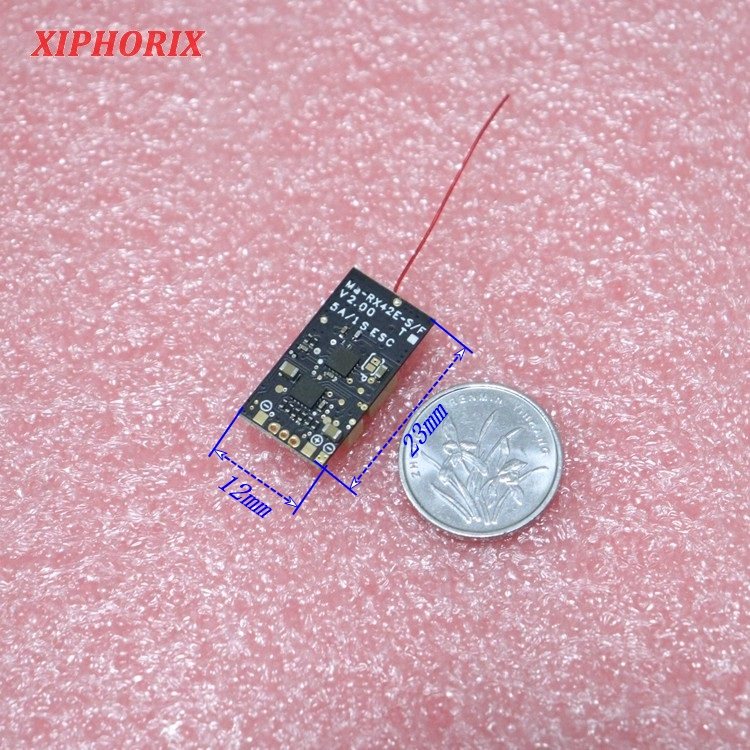

Size

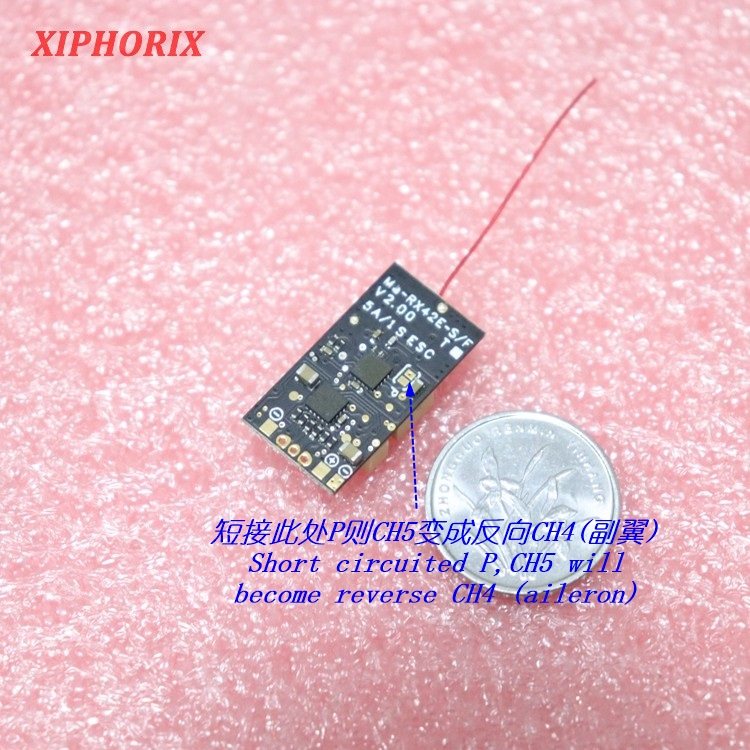

 If the P point is short circuited, channel 5 can change  to reverse aileron.

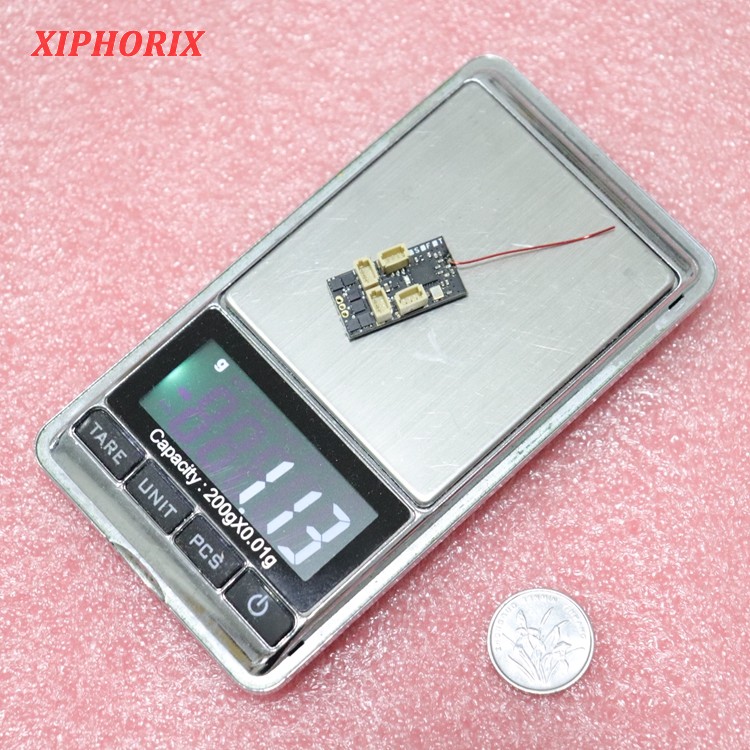

Weight 1.13g

The connector of brushless motor is 1.5mm pitch
