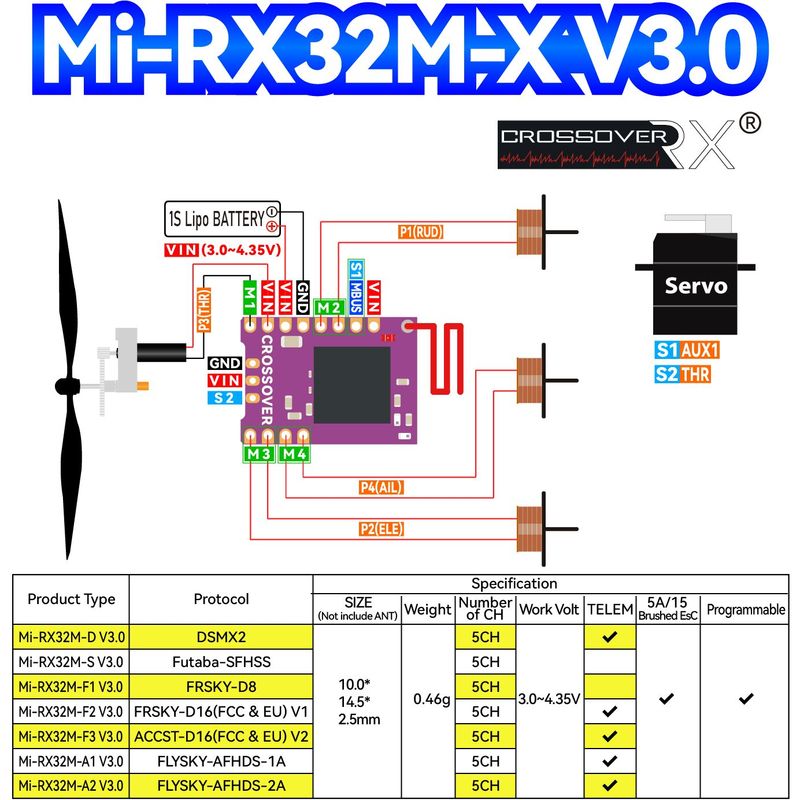

Compatible Multi Protocol, Support TELEM, 2.4G Micro 5-Channel Receiver  Built-in 1S 5A Brushed ESC and 3 Actuator Driver CROSSOVER-RX RX32M Series Receiver,  Work Votage: 3-4.35V, Size: 15(L) X 10(W) X 2.5(H) mm. It also supports one standard servo and one standard ESC.

About the compatible protocols, note the letters behind the receiver

With A is compatible with  AFHDS-2A (A2) protocol of FlySky , With D is compatible with DSM2/X protocol of Horizonhobby , Spektrum etc. With F is compatible with D8 (F1) \FRSKY-D16 (F2)\ ACCST-D16(F3)protocol of Frsky,  With S is compatible with S-FHSS protocol of Futaba.  Please select the appropriate receiver according to your transmitter protocol.

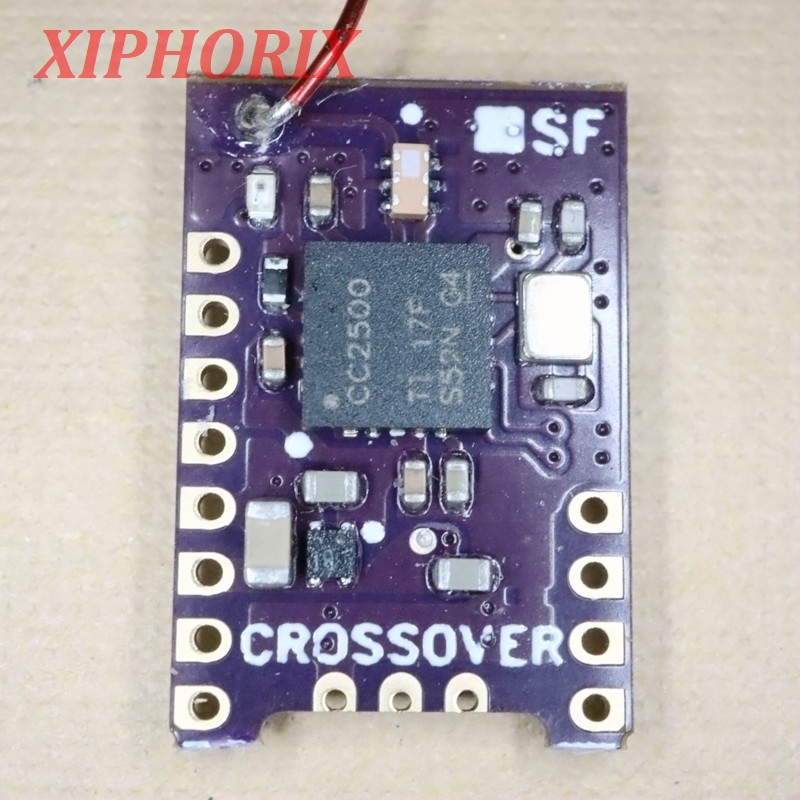

This is compatible with the S/F protocol receiver,

Binding: The receiver goes in binding mode automatically after powered on and no signal for 15 seconds (slow flashing LED light turns to fast flashing), then complete the binding operation according to your transmitter binding manual. LED of receiver is on and binding is completed.

The TELEM function: It can realize the real-time monitoring of battery voltage, receiver working voltage, receiver signal strength and receiver working temperature. It also needs the supportion of transmitter, so that you can master the working status of receiver and battery in real time. Note: the distance of the TELEM function is related to the transmitter. It is normal that the working distance of the receiver is much higher than the TELEM function.

Start-Lock Function: It can prevent brushed motor starting by mistake.  For example the throttle stick is not at the lowest position when the receiver is powered on.When the throttle stick  is at the lowest position for 2 seconds, as soon as the receiver gets the signal, Start-Lock will be released then, the brushed motor can work when the throttle stick is pushed.

Back

Detail

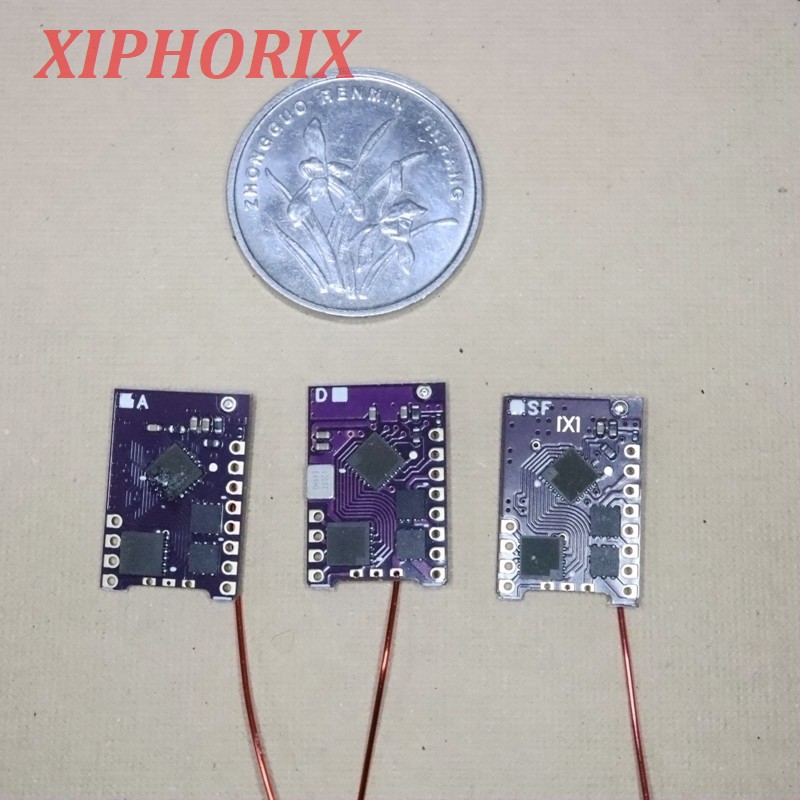

Three receivers using different 2.4G communication protocol chips, marked in the upper left corner

With A is compatible with  AFHDS-2A (A2) protocol of FlySky

With D is compatible with DSM2/X protocol of Horizonhobby , Spektrum etc.

With F is compatible with D8 (F1) \FRSKY-D16 (F2)\ ACCST-D16(F3)protocol of Frsky,  With S is compatible with S-FHSS protocol of Futaba.

The weight of the receivers is slightly different due to the receiving chip, The weight of the receiver compatible with DSM2/X is 0.47g.

The weight of the receiver compatible with Futaba S-FHSS or FRYSKY D series is 0.44g.

The weight of the receiver compatible with FlySky AFHDS-2A is 0.42g.

The previous V2 version of the RX32M and MXR62 receivers used the same circuit board (the RX32M has an extra chip on the hardware), so compare the size of the two RX32M receivers

Comparison of the latest V3 version of the MXR62 receiver and the RX32M receiver
