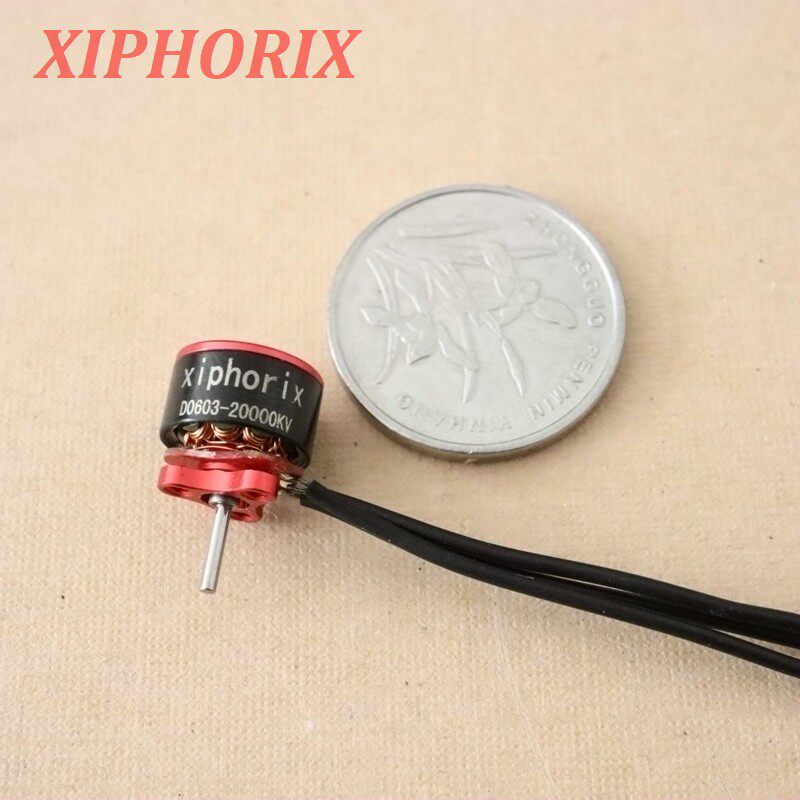

1.7g micro outrunner brushless motor D0603 20000KV，For 1S（3.7V）Lipo Battery，Shaft 1.0mm

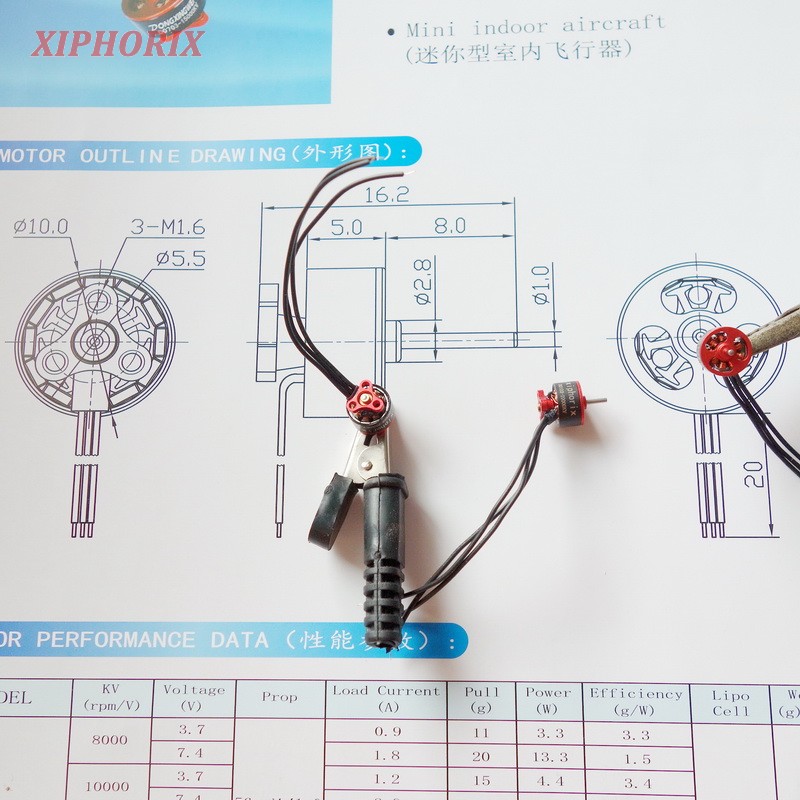

3 views，the background is D0703 data，D0703 rotor diameter is 9mm，The shaft of D0603 is  2mm shorter than D0703

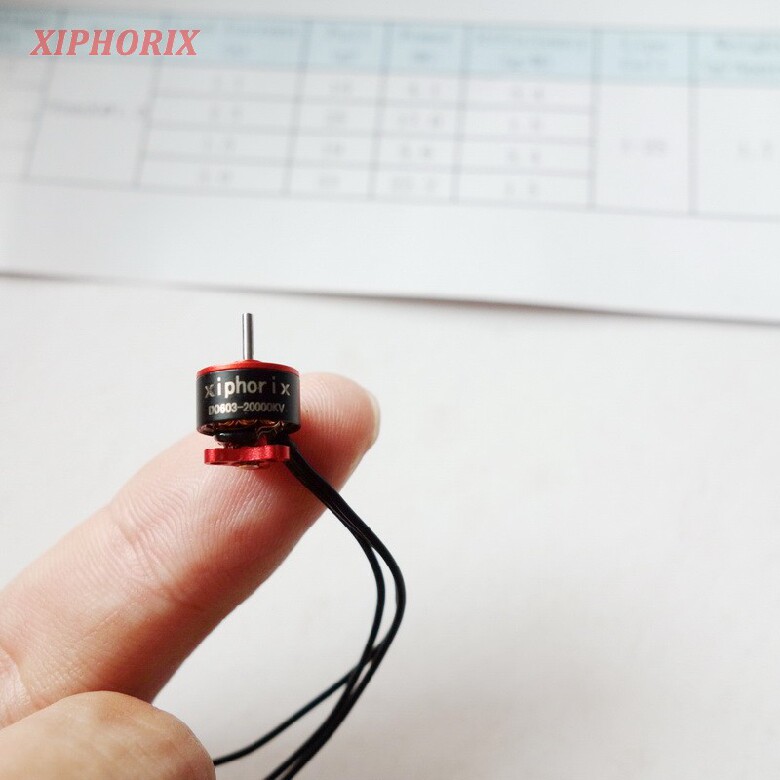

Closer to view

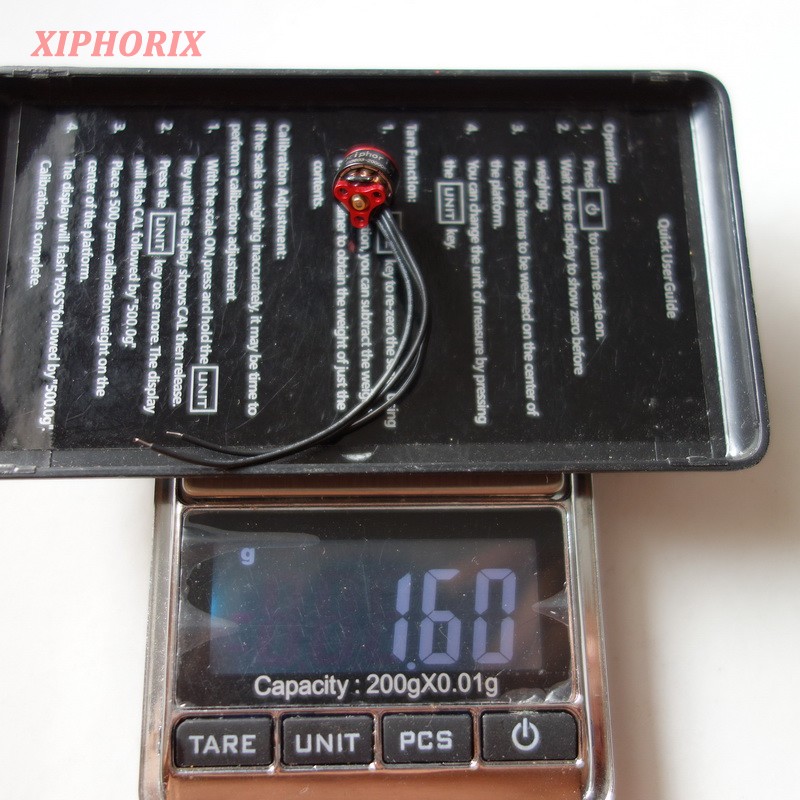

Weight about 1.7g because motor has been upgraded to a style with pads

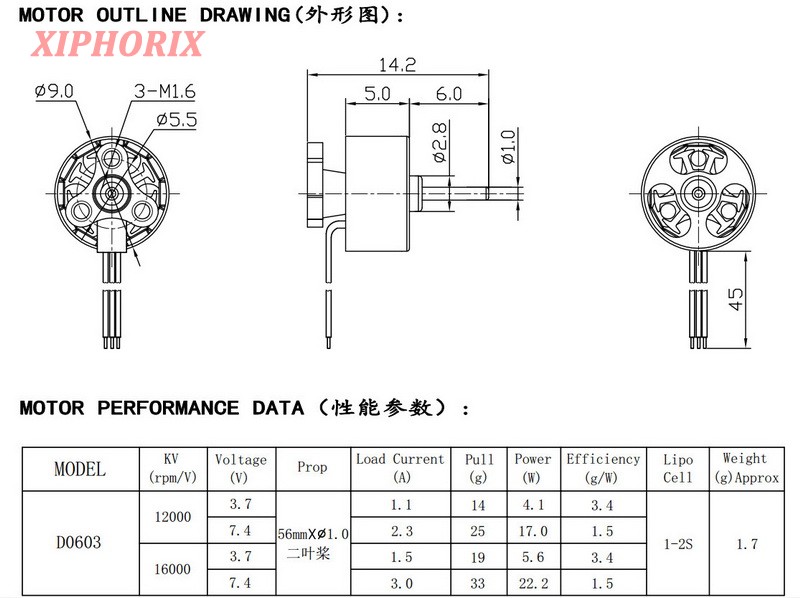

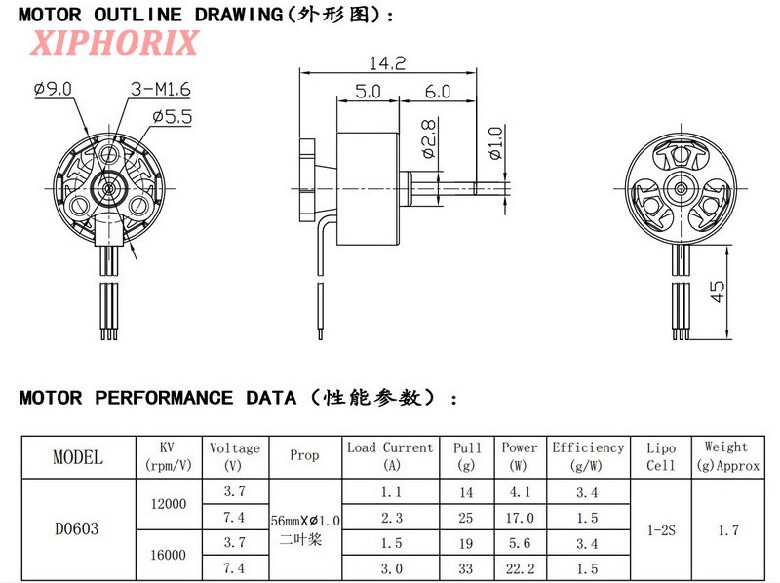

The information given by the manufacturers, with 56mm 2blade propeller to test. Although no data of 20000KV motor, but according to the test data, you can roughly calculate the thrust of 20000KV motor is about 24g, current about 2A with 1S(3.7V) Lipo battery.

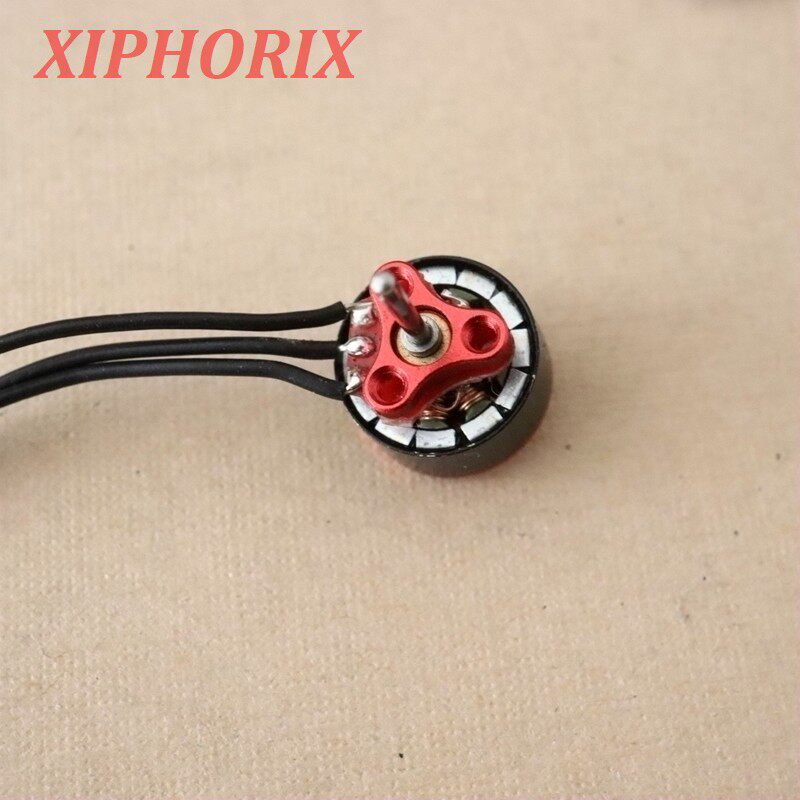

Counter-shaft motor, length 5mm

Just for reduction

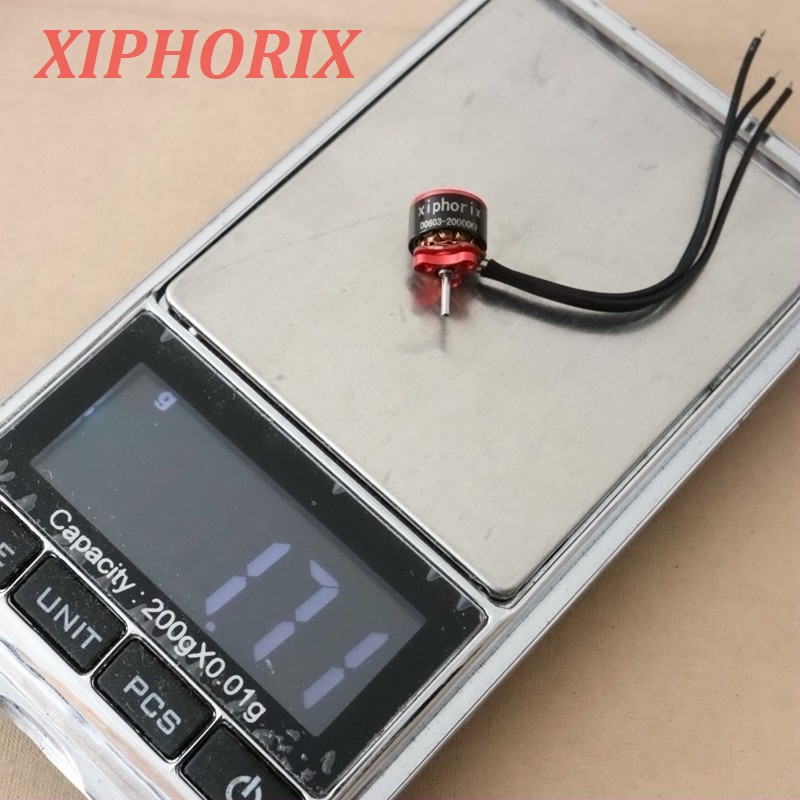

Weight 1.71g

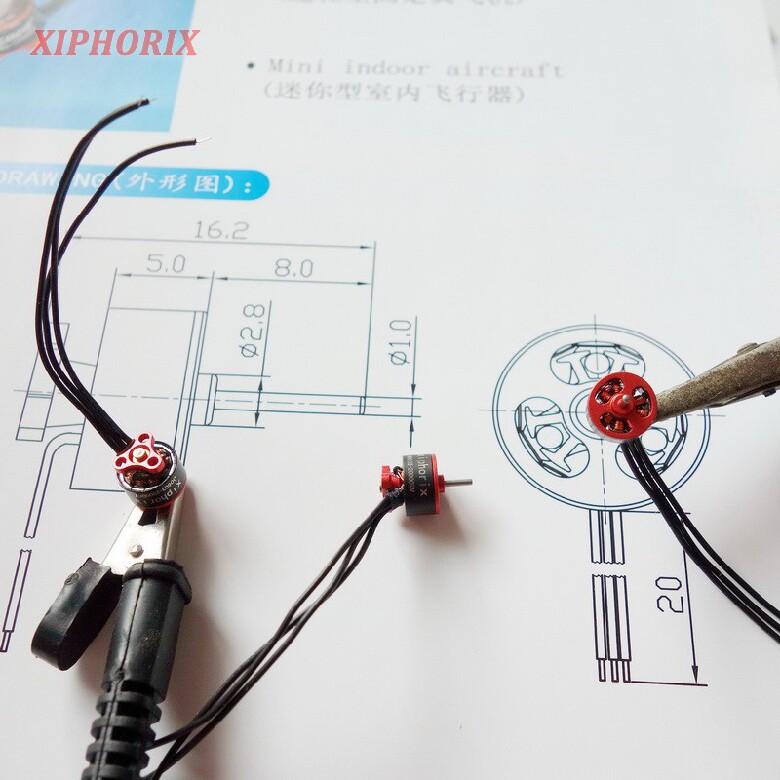

Three different types of counter-shaft motors
