1.0 mm Pitch 2P Square Single Male and Female Pin Header Connector
Description
1.0 mm Pitch 2P Square Single Male and Female Pin Header Connector
![](https://img.alicdn.com/imgextra/i3/50458907/O1CN01dv8Vp12FfSYBew9lv_!!50458907.jpg)

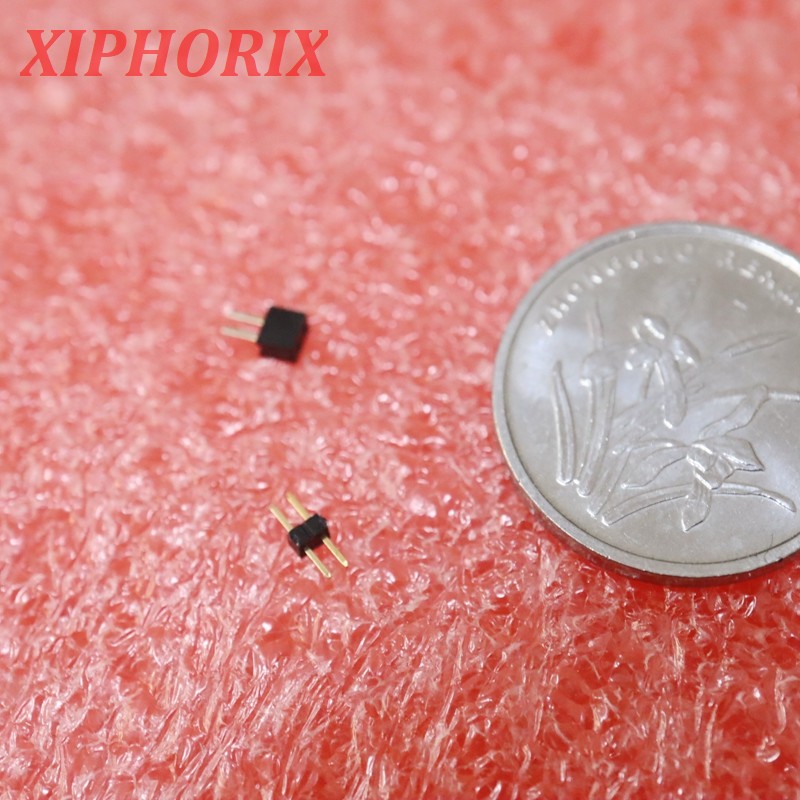

Very Small
![](https://img.alicdn.com/imgextra/i2/50458907/O1CN01H6cBUW2FfSYDiD0OO_!!50458907.jpg)
Size
![](https://img.alicdn.com/imgextra/i3/50458907/O1CN01CbB6T42FfSYCqnCH8_!!50458907.jpg)

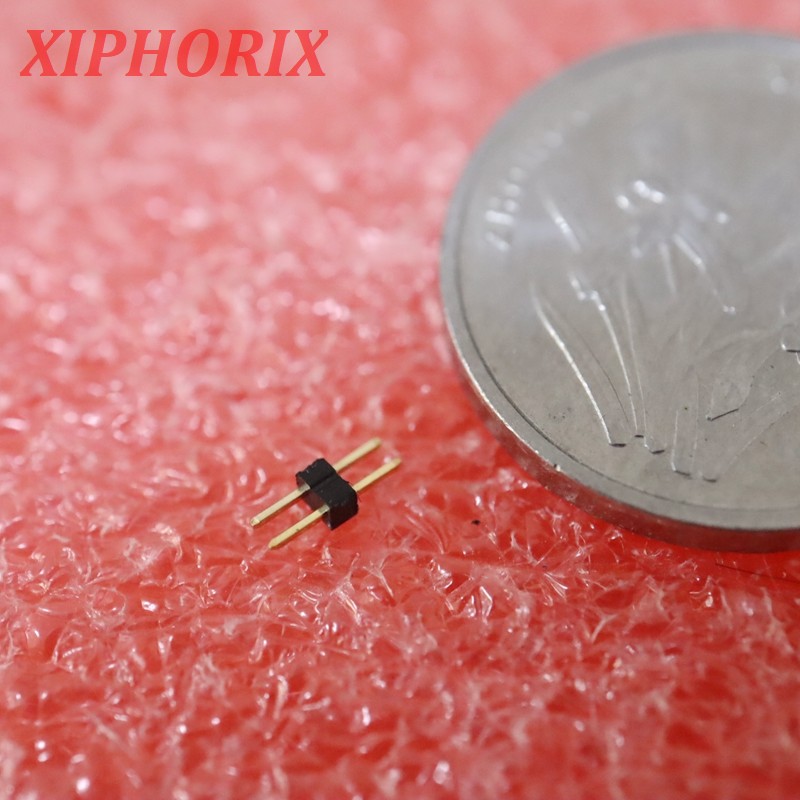

The Male Plug, The contact pin is square
![](https://img.alicdn.com/imgextra/i4/50458907/O1CN01z6JMJg2FfSY4jgVqg_!!50458907.jpg)

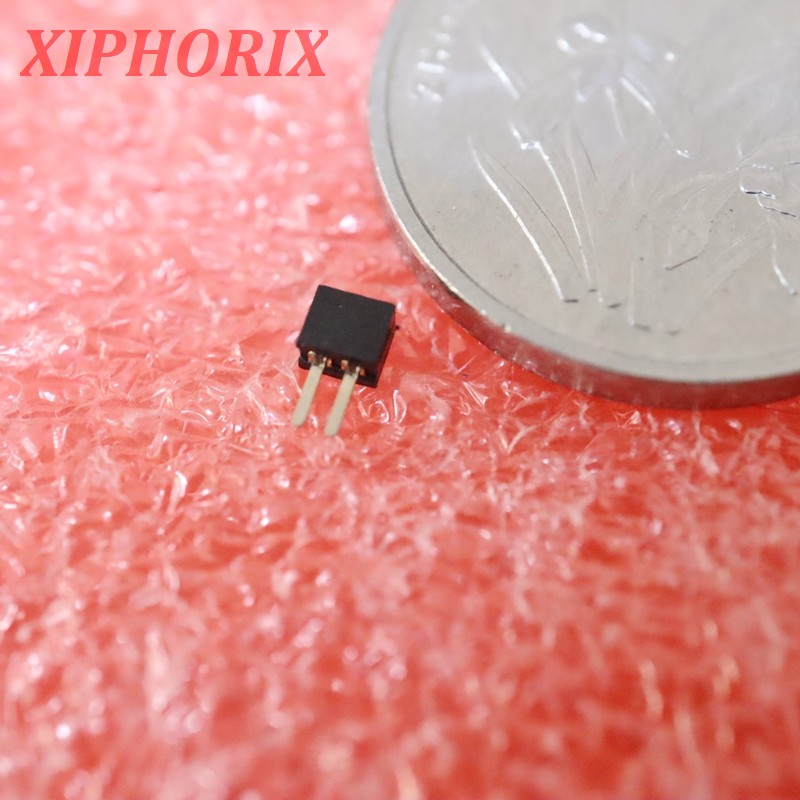

The Female Socket
![](https://img.alicdn.com/imgextra/i4/50458907/O1CN01HgOPVB2FfSY5Vodqr_!!50458907.jpg)
Female Socket 3 Views
![](https://img.alicdn.com/imgextra/i3/50458907/O1CN01b6Tu8w2FfSY6WARXK_!!50458907.jpg)
The weight of the male plug is about 0.008g, and 10 of them are measured together
![](https://img.alicdn.com/imgextra/i1/50458907/O1CN01GWnMF02FfSY4ta3dL_!!50458907.jpg)
The weight of the female socket is about 0.012g, and 10 of them are measured together
![](https://img.alicdn.com/imgextra/i4/50458907/O1CN01Jx5spo2FfSY0O57A2_!!50458907.jpg)
Features
Connector Pitch |
SH1.0mm pitch
|
