Note：the drawing does not represent the real object, just show the parameters of the pinion

Module 0.3 9/10/11/12 Teeth Nylon Pinion, Interference Fit 1.0/1.2mm Shaft of Motor, The manufacturers to sale coreless motor with brass gears is a conspiracy, the installation of brass gears is easy to damage the motor, personal no special tools are difficult to install, it is easy to break the motor, so you can only buy the manufacturer's original motor with brass gears.

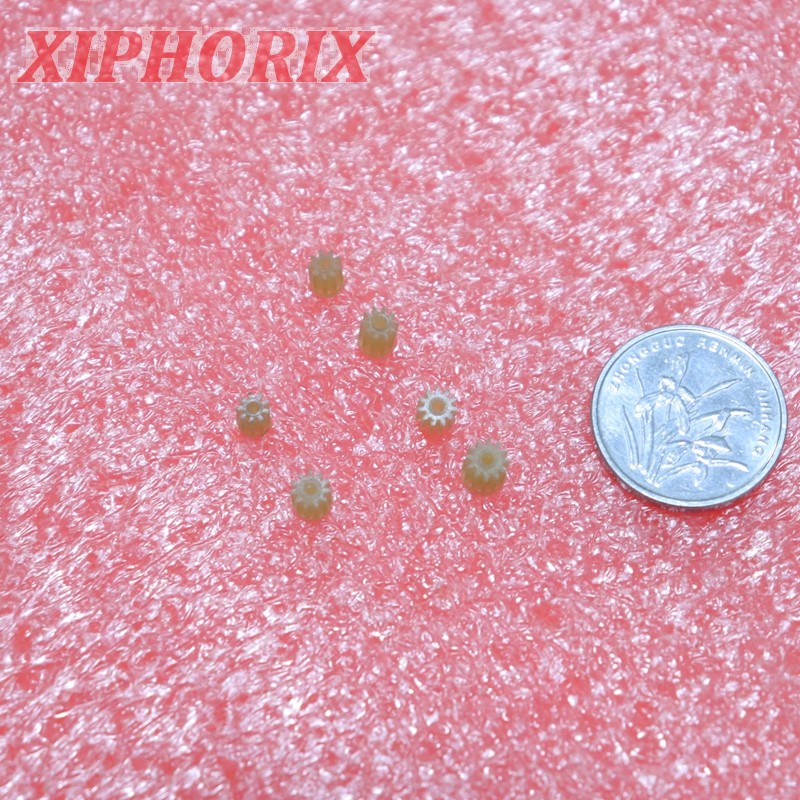

M0.3,1.0mm/9T gear

M0.3,1.2mm/9T gear

M0.3,1.2mm/10T gear

M0.3,1.0mm/11T gear

M0.3,1.2mm/11T gear

M0.3,1.2mm/12T gear

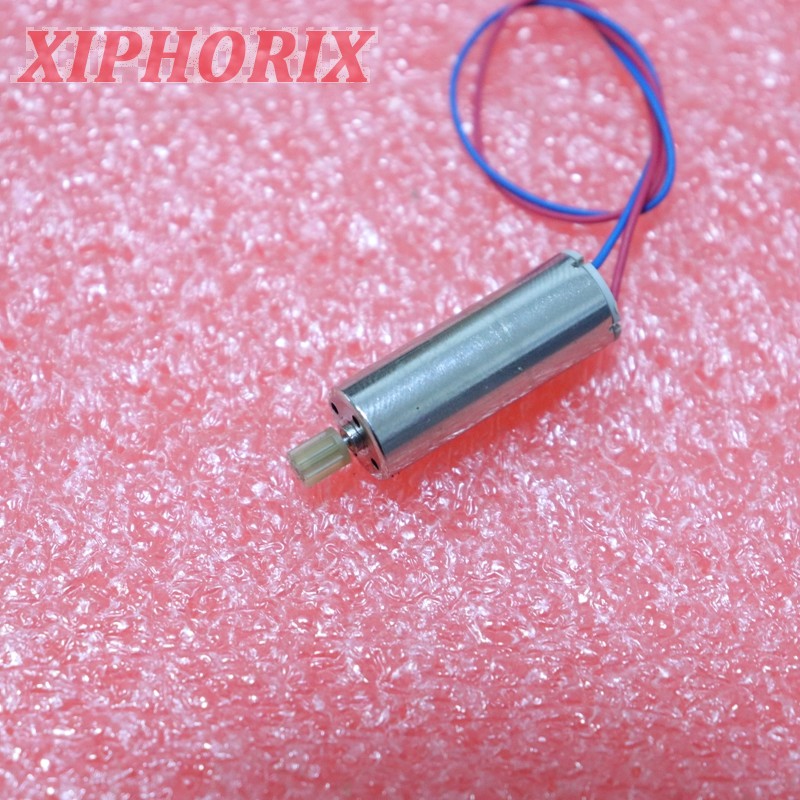

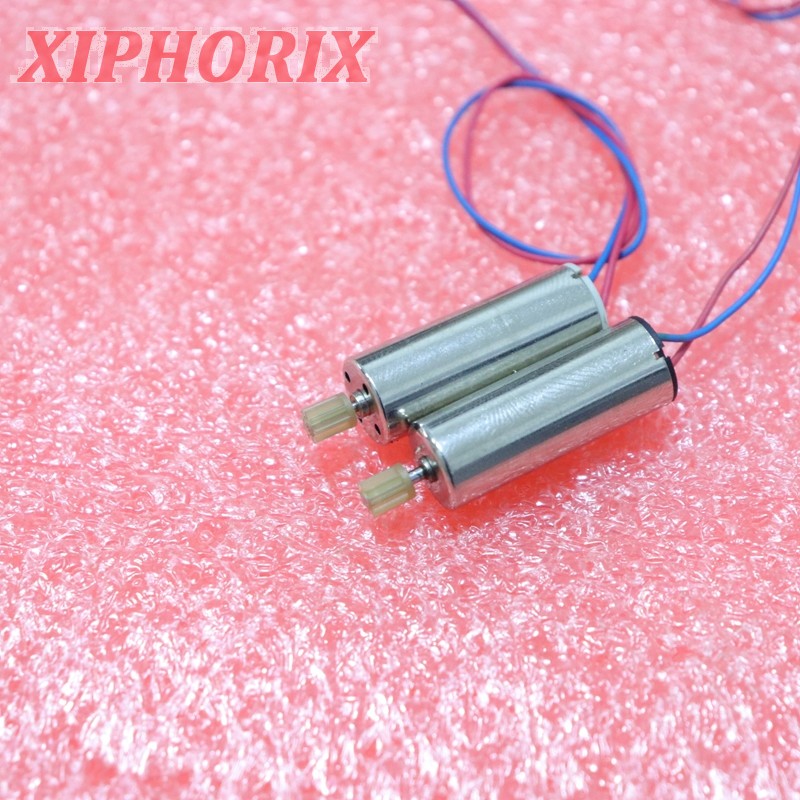

Real thing, 11 teeth/1.2mm changed

Top

Suitable for 1.0mm shaft of motor

Suitable for 1.0/1.2mm shaft of motor
